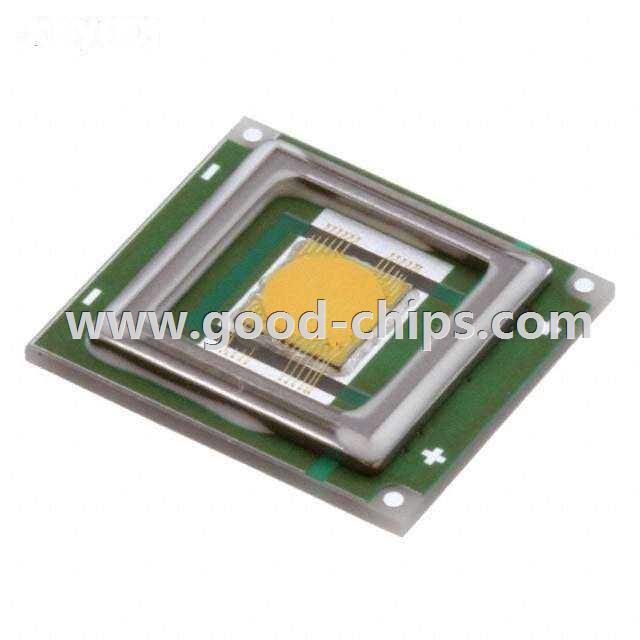

| Manufacturer Part Number: | SBT-70-WCS-F75-PB120 |
|---|---|
| Manufacturer: | Luminus Devices Inc. |
| Product Category: | LED Lighting - White |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Lighting SBT-70 White, Cool 7260K 3.7V 10.5A 2-SMD, No Lead, Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SBT-70-WCS-F75-PB120 Datasheet |
| Internal Part Number | 898-SBT-70-WCS-F75-PB120 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Obsolescence/ EOL | SBT-70,CBT-140 Series 13/Jun/2014 | |
| Category | Optoelectronics | |
| Family | LED Lighting - White | |
| Manufacturer | Luminus Devices Inc. | |
| Series | SBT-70 | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Color | White, Cool | |
| CCT (K) | 7260K | |
| Flux @ 85°C, Current - Test | - | |
| Flux @ 25°C, Current - Test | 1878 lm (1655 lm ~ 2100 lm) | |
| Current - Test | 10.5A | |
| Voltage - Forward (Vf) (Typ) | 3.7V | |
| Lumens/Watt @ Current - Test | 48 lm/W | |
| CRI (Color Rendering Index) | 75 (Typ) | |
| Current - Max | 10.5A | |
| Viewing Angle | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-SMD, No Lead, Exposed Pad | |
| Thermal Resistance of Package | 0.7°C/W | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SBT-70-WCS-F75-PB120 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SBT-70-WCS-F75-PB120 is in stock for immediate shipping now. We are the distributor of Luminus Devices Inc. all series components. The condition of SBT-70-WCS-F75-PB120 is new and unused, you can buy SBT-70-WCS-F75-PB120 Luminus Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SBT-70-WCS-F75-PB120.
