Manufacturer Part Number: | SBSGP5000222MXT |
---|---|
Manufacturer: | Knowles Syfer |
Product Category: | EMI/RFI Filters (LC, RC Networks) |
Available Quantity: | 12060 Pieces |
Unit Price: | Quote by Email |

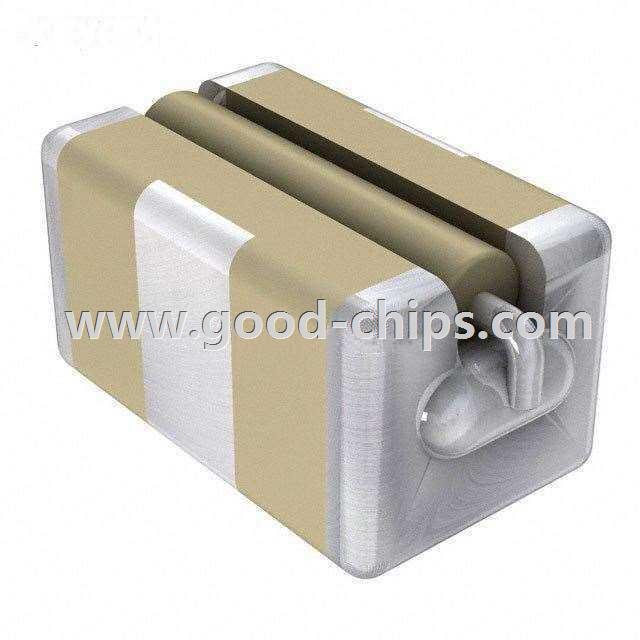

Description: | LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 2200pF 5A 1812 (4532 Metric), 3 PC Pad |
Lead Free Status / RoHS Status: | Lead free by exemption / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SBSGP5000222MXT Datasheet |
Internal Part Number | 898-SBSGP5000222MXT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | SBSG Series | |
Category | Filters | |
Family | EMI/RFI Filters (LC, RC Networks) | |
Manufacturer | Knowles Syfer | |
Series | SBS | |
Packaging | Digi-Reel® | |
Part Status | Active | |
Type | Low Pass | |
Filter Order | 3rd | |
Technology | LC (Pi) | |
Number of Channels | 1 | |
Center / Cutoff Frequency | - | |
Attenuation Value | 39dB @ 100MHz | |
Resistance - Channel (Ohms) | - | |
Current | 5A | |
Values | C = 2200pF | |
ESD Protection | No | |
Operating Temperature | - | |
Applications | General Purpose | |
Voltage - Rated | 500V | |
Mounting Type | Surface Mount | |
Package / Case | 1812 (4532 Metric), 3 PC Pad | |
Size / Dimension | 0.179" L x 0.126" W (4.55mm x 3.20mm) | |
Height | 0.104" (2.64mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SBSGP5000222MXT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SBSGP5000222MXT is in stock for immediate shipping now. We are the distributor of Knowles Syfer all series components. The condition of SBSGP5000222MXT is new and unused, you can buy SBSGP5000222MXT Knowles Syfer with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SBSGP5000222MXT.
