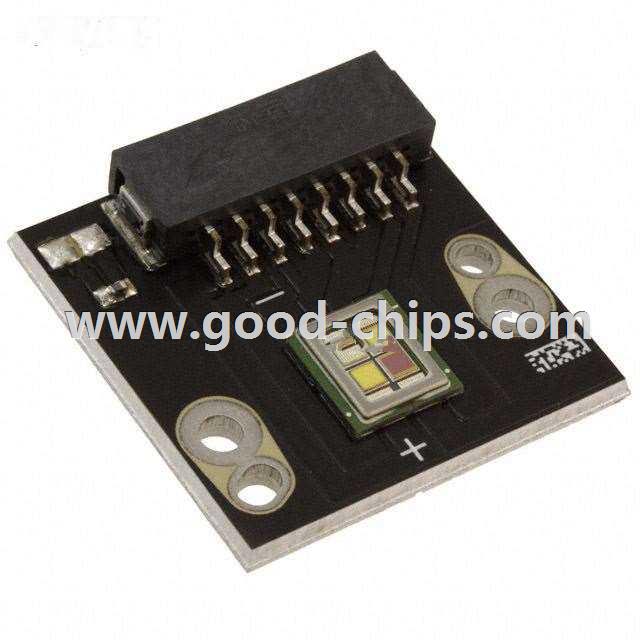

| Manufacturer Part Number: | SBR-160-RGBW-R41-RF100 |
|---|---|
| Manufacturer: | Luminus Devices Inc. |
| Product Category: | LED Lighting - COBs, Engines, Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Lighting COBs, Engines, Modules LED Module SBR-160 Red, Green, Blue, White - Cool (RGBW) Square |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SBR-160-RGBW-R41-RF100 Datasheet |
| Internal Part Number | 898-SBR-160-RGBW-R41-RF100 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Obsolescence/ EOL | SBM/SBR-160-RGBW Devices 17/Jun/2014 | |
| PCN Design/Specification | SBM-160 and SBR-160 Flux Levels 13/Dec/2012 | |
| Category | Optoelectronics | |
| Family | LED Lighting - COBs, Engines, Modules | |
| Manufacturer | Luminus Devices Inc. | |
| Series | SBR-160 | |
| Packaging | - | |
| Part Status | Obsolete | |
| Type | LED Module | |
| Color | Red, Green, Blue, White - Cool (RGBW) | |
| CCT (K) | 7100K | |
| Wavelength | 623nm Red, 530nm Green, 458nm Blue | |
| Configuration | Square | |
| Flux @ Current/Temperature - Test | 320 lm Red, 820 lm Green, 150 lm Blue, 730 lm White | |
| Current - Test | 4A Red, 4A Green, 4A Blue, 4A White | |
| Temperature - Test | 25°C | |
| Voltage - Forward (Vf) (Typ) | 2.6V Red, 4.6V Green, 3.8V Blue, 3.8V White | |
| Lumens/Watt @ Current - Test | 31 lm/W Red, 45 lm/W Green, 10 lm/W Blue, 48 lm/W White | |
| Current - Max | 4A Red, 4A Green, 4A Blue, 4A White | |
| CRI (Color Rendering Index) | - | |
| Viewing Angle | 18° Red, 38° Green, 24° Blue | |
| Features | - | |
| Size / Dimension | 36.00mm L x 36.00mm W | |
| Height | 8.72mm | |
| Light Emitting Surface (LES) | - | |
| Lens Type | Flat | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SBR-160-RGBW-R41-RF100 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SBR-160-RGBW-R41-RF100 is in stock for immediate shipping now. We are the distributor of Luminus Devices Inc. all series components. The condition of SBR-160-RGBW-R41-RF100 is new and unused, you can buy SBR-160-RGBW-R41-RF100 Luminus Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SBR-160-RGBW-R41-RF100.
