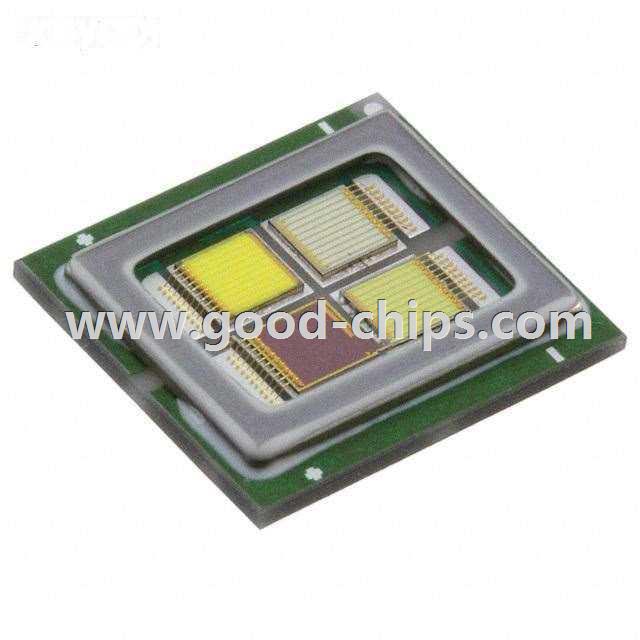

| Manufacturer Part Number: | SBM-160-RGBW-H41-RF100 |
|---|---|
| Manufacturer: | Luminus Devices Inc. |
| Product Category: | LED Lighting - Color |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Lighting Color SBM-160 Red, Green, Blue, White - Cool (RGBW) 623nm Red, 530nm Green, 458nm Blue, 7100K White 8-SMD Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SBM-160-RGBW-H41-RF100 Datasheet |
| Internal Part Number | 898-SBM-160-RGBW-H41-RF100 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Obsolescence/ EOL | SBM/SBR-160-RGBW Devices 17/Jun/2014 | |
| PCN Design/Specification | SBM-160 and SBR-160 Flux Levels 13/Dec/2012 | |
| Category | Optoelectronics | |
| Family | LED Lighting - Color | |
| Manufacturer | Luminus Devices Inc. | |
| Series | SBM-160 | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Color | Red, Green, Blue, White - Cool (RGBW) | |
| Wavelength | 623nm Red, 530nm Green, 458nm Blue, 7100K White | |
| Current - Test | 4A Red, 4A Green, 4A Blue, 4A White | |
| Voltage - Forward (Vf) (Typ) | 2.6V Red, 4.6V Green, 3.8V Blue, 3.8V White | |
| Lumens/Watt @ Current - Test | 31 lm/W Red, 40 lm/W Green, 7 lm/W Blue, 39 lm/W White | |
| Current - Max | 4A Red, 4A Green, 4A Blue, 4A White | |
| Flux @ Current/Temperature - Test | 320 lm Red, 740 lm Green, 110 lm Blue, 590 lm White | |
| Temperature - Test | 25°C | |
| Viewing Angle | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SMD Module | |
| Thermal Resistance of Package | 1.46°C/W | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SBM-160-RGBW-H41-RF100 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SBM-160-RGBW-H41-RF100 is in stock for immediate shipping now. We are the distributor of Luminus Devices Inc. all series components. The condition of SBM-160-RGBW-H41-RF100 is new and unused, you can buy SBM-160-RGBW-H41-RF100 Luminus Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SBM-160-RGBW-H41-RF100.
