| Manufacturer Part Number: | SBCP-47HY3R3B |
|---|---|
| Manufacturer: | Kemet |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

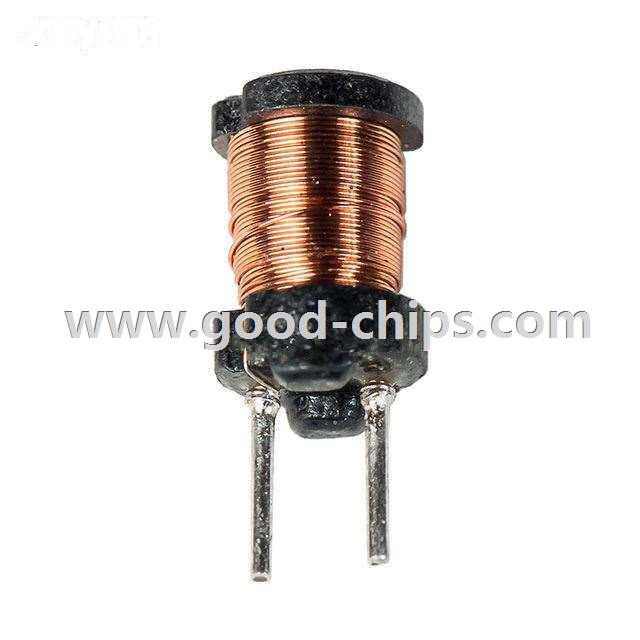

| Description: | 3.3µH Unshielded Wirewound Inductor 2.3A 37 mOhm Max Radial, Vertical Cylinder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SBCP-47HY3R3B Datasheet |
| Internal Part Number | 898-SBCP-47HY3R3B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Kemet | |
| Series | SBCP | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 3.3µH | |
| Tolerance | ±20% | |
| Current Rating | 2.3A | |
| Current - Saturation | 2.7A | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 37 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | - | |
| Frequency - Test | 10kHz | |
| Mounting Type | Through Hole | |
| Package / Case | Radial, Vertical Cylinder | |
| Size / Dimension | 0.197" Dia (5.00mm) | |
| Height - Seated (Max) | 0.295" (7.50mm) | |
| Standard Package | 6,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SBCP-47HY3R3B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SBCP-47HY3R3B is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of SBCP-47HY3R3B is new and unused, you can buy SBCP-47HY3R3B Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SBCP-47HY3R3B.
