Manufacturer Part Number: | SBC8241 |
---|---|
Manufacturer: | Winchester Electronics |
Product Category: | Coaxial Connectors (RF) |
Available Quantity: | 9025 Pieces |
Unit Price: | Quote by Email |

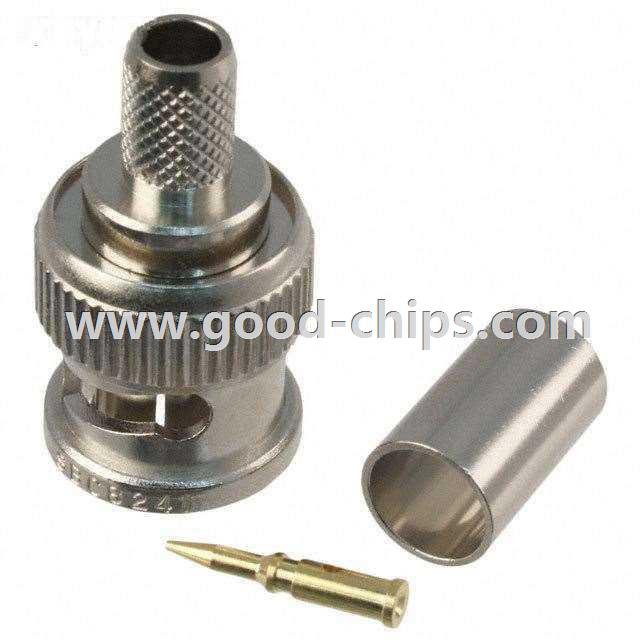

Description: | BNC Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line) Crimp |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SBC8241 Datasheet |
Internal Part Number | 898-SBC8241 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | BNC Connectors | |
Category | Connectors, Interconnects | |
Family | Coaxial Connectors (RF) | |
Manufacturer | Winchester Electronics | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | BNC | |
Connector Type | Plug, Male Pin | |
Contact Termination | Crimp | |
Shield Termination | Crimp | |
Impedance | 75 Ohm | |
Mounting Type | Free Hanging (In-Line) | |
Cable Group | RG-59, Belden 8241 | |
Fastening Type | Bayonet Lock | |
Frequency - Max | 1GHz | |
Features | - | |
Housing Color | Silver | |
Ingress Protection | Weatherproof | |
Body Material | Brass | |
Body Finish | Nickel | |
Center Contact Material | - | |
Center Contact Plating | - | |
Dielectric Material | - | |
Voltage Rating | 500V | |
Operating Temperature | - | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SBC8241 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SBC8241 is in stock for immediate shipping now. We are the distributor of Winchester Electronics all series components. The condition of SBC8241 is new and unused, you can buy SBC8241 Winchester Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SBC8241.
