| Manufacturer Part Number: | SA636BS,115 |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | RF Mixers |
| Available Quantity: | 10510 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Mixer IC Cellular, ASK, DECT, FSK, UHF, VHF Up Converter 500MHz 20-HVQFN (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SA636BS,115 Datasheet |
| Internal Part Number | 898-SA636BS,115 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | RF-IF Basics | |
| Design Resources | IoT Product Selector | |
| Featured Product | SA6xx Series RF/IF Building Blocks | |
| PCN Assembly/Origin | Transf RC3 Line ASMC from 125mm to 150mm 18/Dec/2015 | |
| PCN Packaging | Date Code Extended 18/Jul/2013 | |
| Online Catalog | Mixers | |
| Category | RF/IF and RFID | |
| Family | RF Mixers | |
| Manufacturer | NXP Semiconductors | |
| Series | SA636 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| RF Type | Cellular, ASK, DECT, FSK, UHF, VHF | |
| Frequency | 500MHz | |
| Number of Mixers | 1 | |
| Gain | 11dB | |
| Noise Figure | 12dB | |
| Secondary Attributes | Up Converter | |
| Current - Supply | 6.5mA | |
| Voltage - Supply | 2.7 V ~ 5.5 V | |
| Package / Case | 20-VFQFN Exposed Pad | |

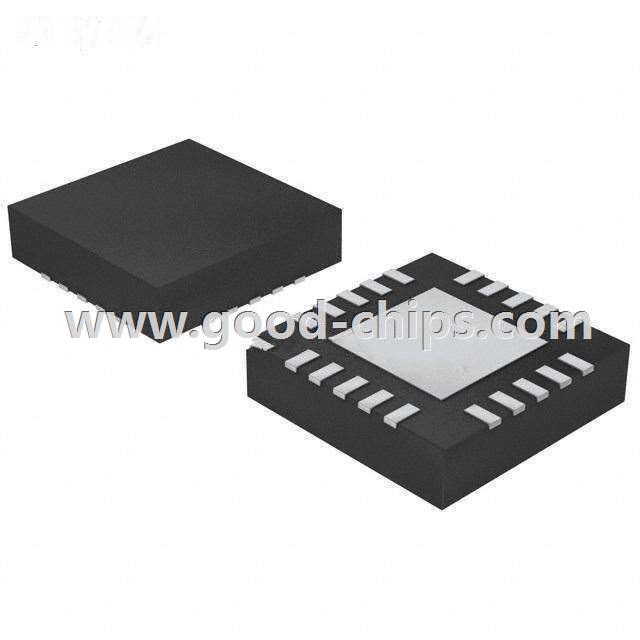

| Supplier Device Package | 20-HVQFN (4x4) | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SA636BS,115 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SA636BS,115 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of SA636BS,115 is new and unused, you can buy SA636BS,115 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SA636BS,115.
