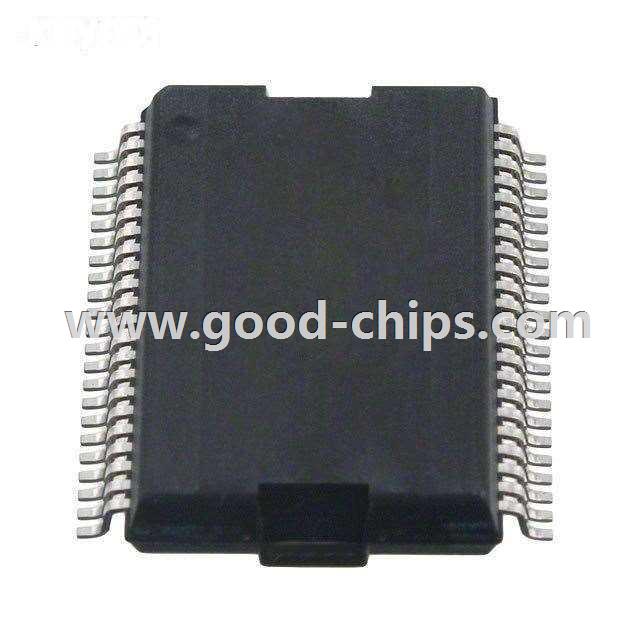

Manufacturer Part Number: | SA306AHR |
---|---|
Manufacturer: | Apex Microtechnology |
Product Category: | PMIC - Full, Half-Bridge Drivers |
Available Quantity: | 9098 Pieces |
Unit Price: | Quote by Email |
Description: | IC MOTOR DRIVER PWM 44HSOP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SA306AHR Datasheet |
Internal Part Number | 898-SA306AHR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Power Analog Portfolio | |
Online Catalog | Full, Half-Bridge Drivers | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Full, Half-Bridge Drivers | |
Manufacturer | Apex Microtechnology | |
Series | Apex Precision Power® | |
Packaging | Bulk | |
Part Status | Active | |
Output Configuration | Half Bridge (3) | |
Applications | DC Motors, General Purpose, Solenoids | |
Interface | PWM | |
Load Type | Inductive | |
Technology | DMOS | |
Rds On (Typ) | 250 mOhm LS, 300 mOhm HS | |
Current - Output / Channel | 8A | |
Current - Peak Output | 17A | |
Voltage - Supply | 4.5 V ~ 5.5 V | |
Voltage - Load | 9 V ~ 60 V | |
Operating Temperature | -40°C ~ 150°C (TJ) | |
Features | - | |
Fault Protection | Current Limiting, Over Temperature, Shoot-Through, UVLO | |
Mounting Type | Surface Mount | |
Package / Case | 44-BSSOP (0.433", 11.00mm Width) Exposed Pad | |
Supplier Device Package | 44-HSOP | |
Standard Package | 29 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SA306AHR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SA306AHR is in stock for immediate shipping now. We are the distributor of Apex Microtechnology all series components. The condition of SA306AHR is new and unused, you can buy SA306AHR Apex Microtechnology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SA306AHR.
