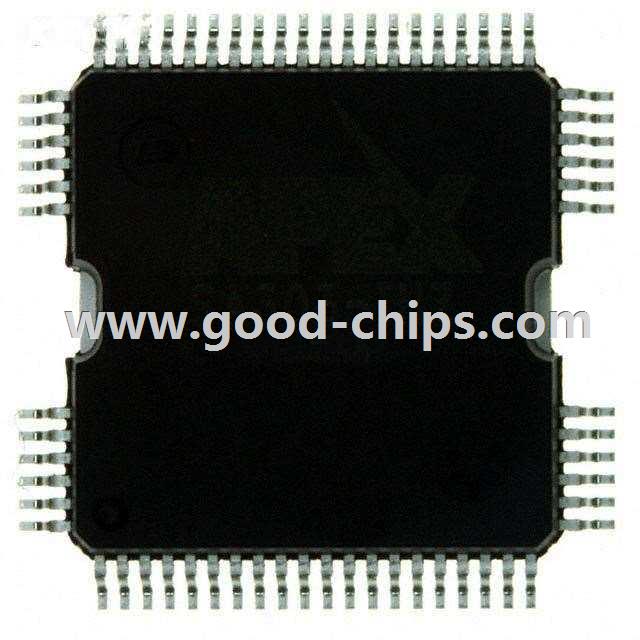

| Manufacturer Part Number: | SA303-IHZ |
|---|---|
| Manufacturer: | Apex Microtechnology |
| Product Category: | PMIC - Full, Half-Bridge Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC MOTOR DRIVER PWM 64QFP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SA303-IHZ Datasheet |
| Internal Part Number | 898-SA303-IHZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | SA303 3-Phase Switching Amplifier | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Manufacturer | Apex Microtechnology | |
| Series | Apex Precision Power® | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Output Configuration | Half Bridge (3) | |
| Applications | DC Motors, General Purpose, Solenoids | |
| Interface | PWM | |
| Load Type | Inductive | |
| Technology | DMOS | |
| Rds On (Typ) | 400 mOhm | |
| Current - Output / Channel | 3A | |
| Current - Peak Output | 10A | |
| Voltage - Supply | 4.5 V ~ 5.5 V | |
| Voltage - Load | 8.3 V ~ 60 V | |
| Operating Temperature | -25°C ~ 150°C (TJ) | |
| Features | - | |
| Fault Protection | Current Limiting, Over Temperature, Shoot-Through, UVLO | |
| Mounting Type | Surface Mount | |
| Package / Case | 64-PowerQFP | |
| Supplier Device Package | 64-PowerQFP | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SA303-IHZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SA303-IHZ is in stock for immediate shipping now. We are the distributor of Apex Microtechnology all series components. The condition of SA303-IHZ is new and unused, you can buy SA303-IHZ Apex Microtechnology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SA303-IHZ.
