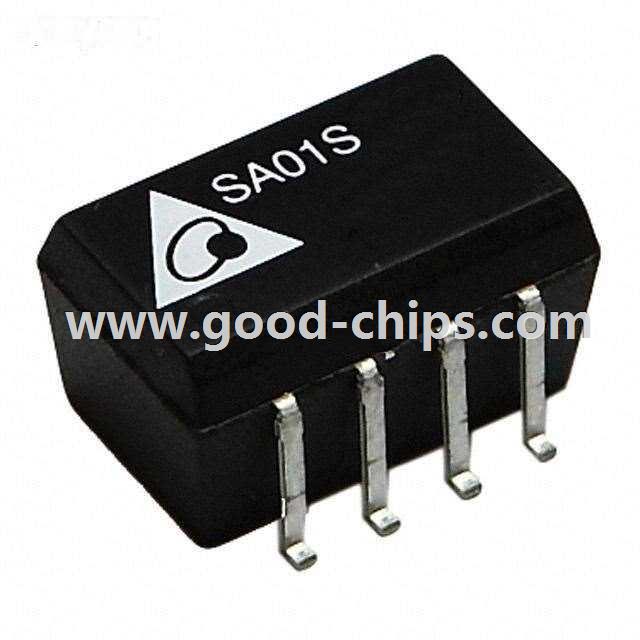

Manufacturer Part Number: | SA01S0503A |
---|---|
Manufacturer: | Delta Electronics |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | DCDC CONVERTER 3.3VOUT 1W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SA01S0503A Datasheet |
Internal Part Number | 898-SA01S0503A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Industrial DC/DC Converters Overview | |
Featured Product | Industrial DC-DC Converters DC/DC Converters – Delta Product Groups | |
Online Catalog | SA01S Series | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Delta Electronics | |
Series | SA01S | |
Packaging | Tube | |
Part Status | Active | |
Type | Isolated Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 4.5V | |
Voltage - Input (Max) | 5.5V | |
Voltage - Output 1 | 3.3V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 300mA | |
Power (Watts) - Manufacture Series | 1W | |
Voltage - Isolation | 1kV (1000V) | |
Applications | Medical | |
Features | SCP | |
Mounting Type | Surface Mount | |
Package / Case | 8-SMD Module | |
Size / Dimension | 0.50" L x 0.42" W x 0.28" H (12.75mm x 10.7mm x 7mm) | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 75% | |
Power (Watts) - Max | 1W | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SA01S0503A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SA01S0503A is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of SA01S0503A is new and unused, you can buy SA01S0503A Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SA01S0503A.
