| Manufacturer Part Number: | S9S12P128J0MFT |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | HCS12 HCS12 Microcontroller IC 16-Bit 32MHz 128KB (128K x 8) FLASH 48-QFN-EP (7x7) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | S9S12P128J0MFT Datasheet |
| Internal Part Number | 898-S9S12P128J0MFT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Packaging | QFN 7x7x1.0mm Tray Change 04/Nov/2013 | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | HCS12 | |
| Packaging | Tray | |
| Part Status | Active | |
| Core Processor | HCS12 | |
| Core Size | 16-Bit | |
| Speed | 32MHz | |
| Connectivity | CAN, SCI, SPI | |
| Peripherals | LVD, POR, PWM, WDT | |
| Number of I/O | 34 | |
| Program Memory Size | 128KB (128K x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | 4K x 8 | |
| RAM Size | 6K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 1.72 V ~ 5.5 V | |
| Data Converters | A/D 10x12b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 125°C (TA) | |

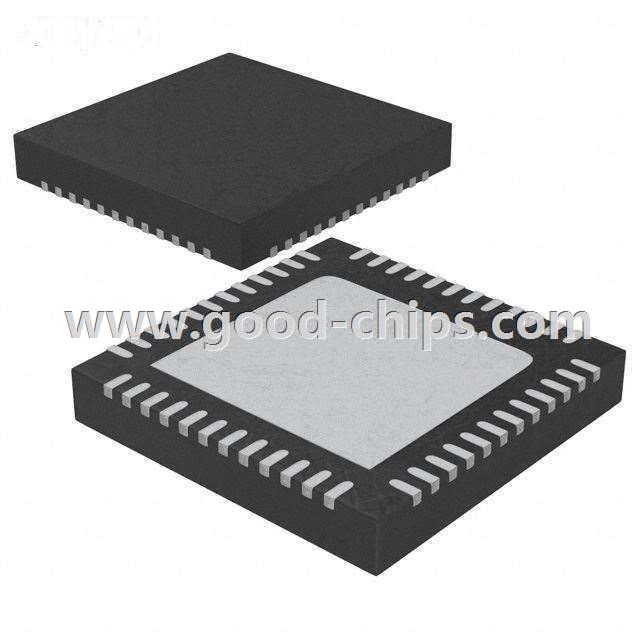

| Package / Case | 48-VFQFN Exposed Pad | |
| Supplier Device Package | 48-QFN-EP (7x7) | |
| Standard Package | 1,300 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | S9S12P128J0MFT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
S9S12P128J0MFT is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of S9S12P128J0MFT is new and unused, you can buy S9S12P128J0MFT NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S9S12P128J0MFT.
