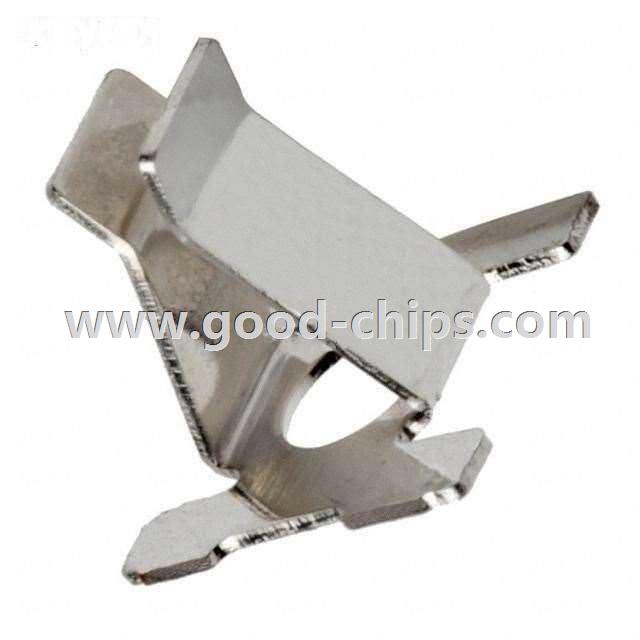

| Manufacturer Part Number: | S9101-46R |
|---|---|
| Manufacturer: | Harwin Inc. |
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors |
| Available Quantity: | 13010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pin Receptacle Connector 0.043" ~ 0.071" (1.10mm ~ 1.80mm) Clip Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | S9101-46R Datasheet |
| Internal Part Number | 898-S9101-46R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | EZ-Board Series | |
| Category | Connectors, Interconnects | |
| Family | Terminals - PC Pin Receptacles, Socket Connectors | |
| Manufacturer | Harwin Inc. | |
| Series | EZ-Board | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Tail Type | Clip | |
| Termination | Surface Mount | |
| Length - Overall | 0.177" (4.50mm) | |
| Accepts Pin Diameter | 0.043" ~ 0.071" (1.10mm ~ 1.80mm) | |
| Mounting Hole Diameter | 0.158" (4.01mm) | |
| Pin Hole Diameter | 0.079" (2.00mm) | |
| Flange Diameter | - | |
| Tail Diameter | - | |
| Socket Depth | 0.138" (3.51mm) | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 157.5µin (4.00µm) | |
| Features | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Board Thickness | - | |
| Insertion Force | 2.80Nm ~ 4.50Nm | |
| Standard Package | 800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | S9101-46R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
S9101-46R is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of S9101-46R is new and unused, you can buy S9101-46R Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S9101-46R.
