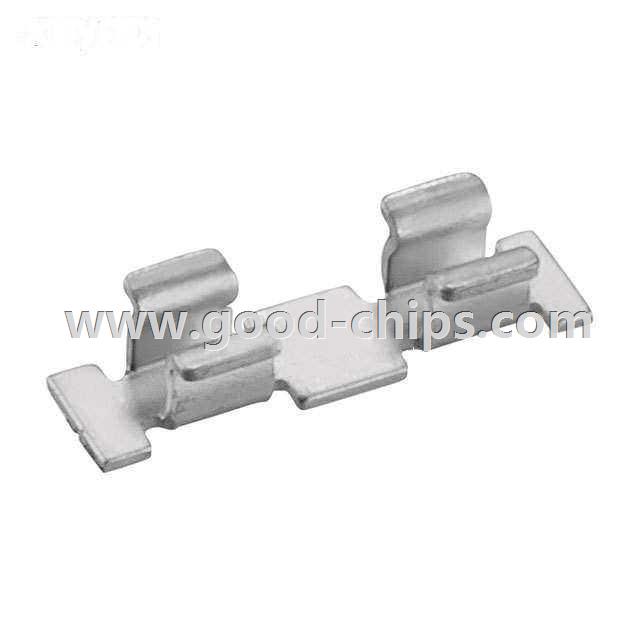

Manufacturer Part Number: | S8071-46R |
---|---|
Manufacturer: | Harwin Inc. |
Product Category: | Terminals - PC Pin Receptacles, Socket Connectors |
Available Quantity: | 19010 Pieces |
Unit Price: | Quote by Email |
Description: | Pin Receptacle Connector 0.028" (0.70mm) No Tail Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | S8071-46R Datasheet |
Internal Part Number | 898-S8071-46R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | EZ-Removable Jumper Links | |
Online Catalog | EZ-Board Series | |
Category | Connectors, Interconnects | |
Family | Terminals - PC Pin Receptacles, Socket Connectors | |
Manufacturer | Harwin Inc. | |
Series | EZ-Board | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Tail Type | No Tail | |
Termination | Solder | |
Length - Overall | 0.177" (4.50mm) | |
Accepts Pin Diameter | 0.028" (0.70mm) | |
Mounting Hole Diameter | - | |
Pin Hole Diameter | - | |
Flange Diameter | - | |
Tail Diameter | - | |
Socket Depth | - | |
Contact Material | Stainless Steel | |
Contact Finish | Tin | |
Contact Finish Thickness | - | |
Features | - | |
Operating Temperature | -40°C ~ 85°C | |
Board Thickness | - | |
Insertion Force | 25.00Nm | |
Standard Package | 10,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | S8071-46R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
S8071-46R is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of S8071-46R is new and unused, you can buy S8071-46R Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S8071-46R.
