| Manufacturer Part Number: | S8055R |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | Thyristors - SCRs |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SCR 800V 55A Standard Recovery Through Hole TO-220 Non-Isolated Tab |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | S8055R Datasheet |
| Internal Part Number | 898-S8055R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Thyristors - SCRs | |
| Manufacturer | Littelfuse Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Not Available | |
| Voltage - Off State | 800V | |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5V | |
| Current - Gate Trigger (Igt) (Max) | 40mA | |
| Voltage - On State (Vtm) (Max) | 1.8V | |
| Current - On State (It (AV)) (Max) | 35A | |
| Current - On State (It (RMS)) (Max) | 55A | |
| Current - Hold (Ih) (Max) | 60mA | |
| Current - Off State (Max) | 20µA | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 550A, 650A | |
| SCR Type | Standard Recovery | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Through Hole | |

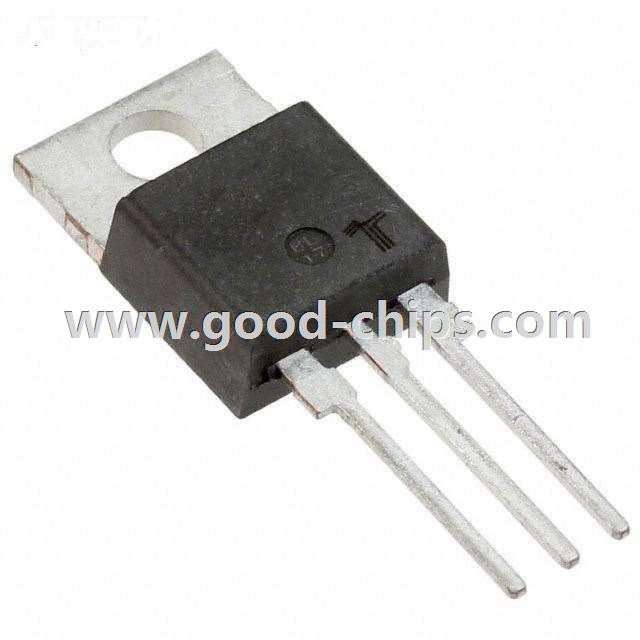

| Package / Case | TO-220-3 | |
| Supplier Device Package | TO-220 Non-Isolated Tab | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | S8055R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
S8055R is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of S8055R is new and unused, you can buy S8055R Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S8055R.
