| Manufacturer Part Number: | S6AP413AFBGN1C000 |
|---|---|
| Manufacturer: | Cypress Semiconductor Corp |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck, Buck-Boost Switching Regulator IC Positive Fixed 1.2V, 1.8V, 3.3V, 1.2V 4 Output 2A, 1.2A, 600mA, 2A 32-WFQFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | S6AP413AFBGN1C000 Datasheet |
| Internal Part Number | 898-S6AP413AFBGN1C000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Cypress Semiconductor Corp | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Down, Step-Up/Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck, Buck-Boost | |
| Output Type | Fixed | |
| Number of Outputs | 4 | |
| Voltage - Input (Min) | 2.5V | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output (Min/Fixed) | 1.2V, 1.8V, 3.3V, 1.2V | |
| Voltage - Output (Max) | - | |
| Current - Output | 2A, 1.2A, 600mA, 2A | |
| Frequency - Switching | 3MHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -30°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

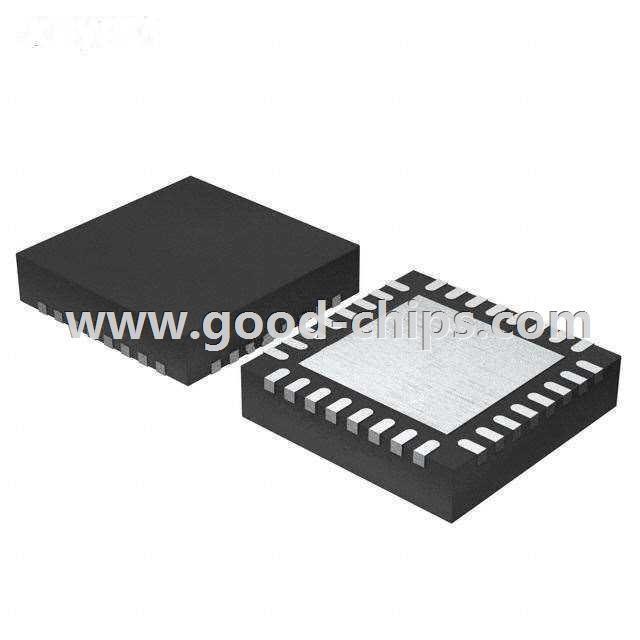

| Package / Case | 32-WFQFN Exposed Pad | |
| Supplier Device Package | 32-QFN (5x5) | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | S6AP413AFBGN1C000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
S6AP413AFBGN1C000 is in stock for immediate shipping now. We are the distributor of Cypress Semiconductor Corp all series components. The condition of S6AP413AFBGN1C000 is new and unused, you can buy S6AP413AFBGN1C000 Cypress Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S6AP413AFBGN1C000.
