| Manufacturer Part Number: | S5B-ZR |
|---|---|
| Manufacturer: | JST Sales America Inc. |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

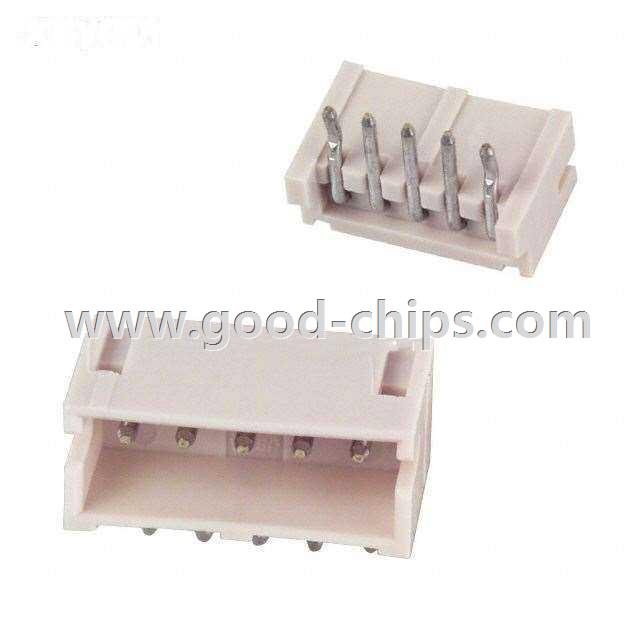

| Description: | 5 Positions Header, Shrouded Connector 0.059" (1.50mm) Through Hole, Right Angle Tin-Lead |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | S5B-ZR Datasheet |
| Internal Part Number | 898-S5B-ZR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | JST Sales America Inc. | |
| Series | ZH | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 5 | |
| Number of Positions Loaded | All | |
| Pitch | 0.059" (1.50mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | 0.094" (2.40mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Press-Fit | |
| Fastening Type | Detent Lock | |
| Features | - | |
| Contact Finish | Tin-Lead | |
| Contact Finish Thickness | - | |
| Color | Natural | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | S5B-ZR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
S5B-ZR is in stock for immediate shipping now. We are the distributor of JST Sales America Inc. all series components. The condition of S5B-ZR is new and unused, you can buy S5B-ZR JST Sales America Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S5B-ZR.
