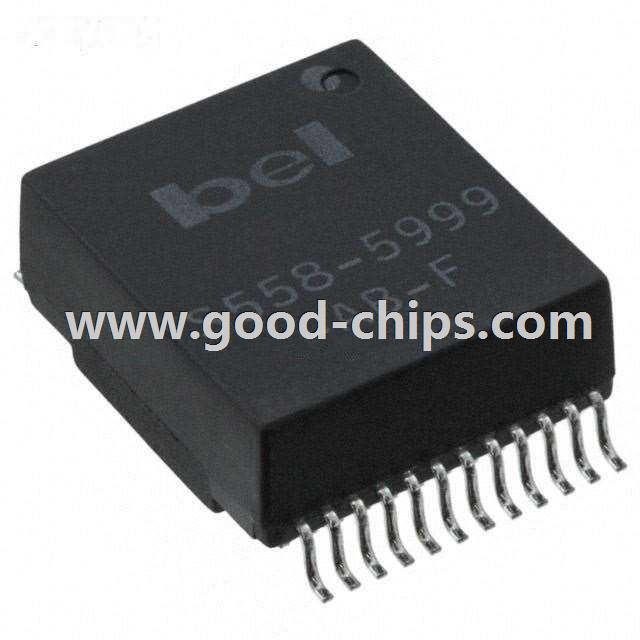

Manufacturer Part Number: | S558-5999-T3-F |
---|---|
Manufacturer: | Bel Fuse Inc. |
Product Category: | Pulse Transformers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | XFRMR MODULE LAN GIGABIT 24P SMD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 2 (1 Year) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | S558-5999-T3-F Datasheet |
Internal Part Number | 898-S558-5999-T3-F | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Magnetics Solutions | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | S558-5999-xx-x | |
Category | Transformers | |
Family | Pulse Transformers | |
Manufacturer | Bel Fuse Inc. | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Transformer Type | - | |
Inductance | 350µH | |
Turns Ratio - Primary:Secondary | 1CT : 1CT Transmitter, 1CT : 1CT Receiver | |
E.T. | - | |
Mounting Type | Surface Mount | |
Size / Dimension | 13.26mm L x 15.24mm W | |
Height - Seated (Max) | 6.35mm | |
Standard Package | 320 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | S558-5999-T3-F | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
S558-5999-T3-F is in stock for immediate shipping now. We are the distributor of Bel Fuse Inc. all series components. The condition of S558-5999-T3-F is new and unused, you can buy S558-5999-T3-F Bel Fuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S558-5999-T3-F.
