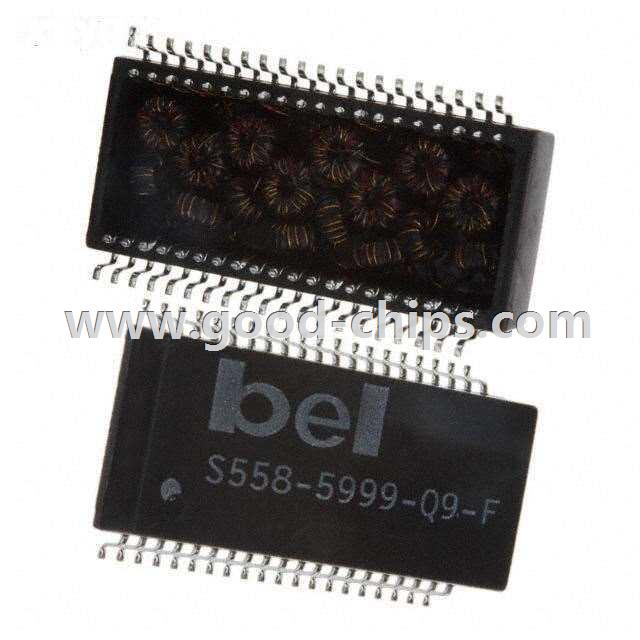

| Manufacturer Part Number: | S558-5999-Q9-F |
|---|---|
| Manufacturer: | Bel Fuse Inc. |
| Product Category: | Pulse Transformers |
| Available Quantity: | 10290 Pieces |
| Unit Price: | Quote by Email |
| Description: | MODULE XFRMR LAN 10/100B-TX SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | S558-5999-Q9-F Datasheet |
| Internal Part Number | 898-S558-5999-Q9-F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Bel Fuse's LAN Discrete Transformer Modules Magnetics Solutions | |
| PCN Design/Specification | S553,S558 Drawing 21/Dec/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | S558-5999-xx-x | |
| Category | Transformers | |
| Family | Pulse Transformers | |
| Manufacturer | Bel Fuse Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Transformer Type | - | |
| Inductance | 350µH | |
| Turns Ratio - Primary:Secondary | 1CT : 1CT Transmitter, 1CT : 1CT Receiver | |
| E.T. | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 27.94mm L x 12.09mm W | |
| Height - Seated (Max) | 5.99mm | |
| Standard Package | 320 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | S558-5999-Q9-F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
S558-5999-Q9-F is in stock for immediate shipping now. We are the distributor of Bel Fuse Inc. all series components. The condition of S558-5999-Q9-F is new and unused, you can buy S558-5999-Q9-F Bel Fuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S558-5999-Q9-F.
