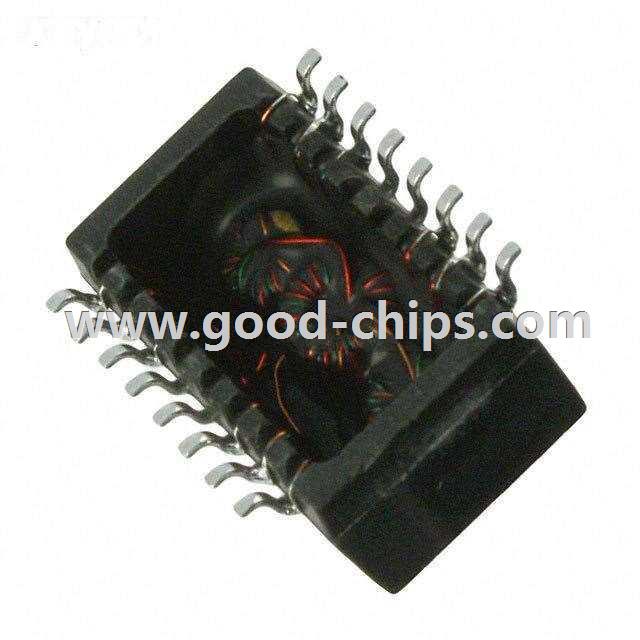

| Manufacturer Part Number: | S553-5999-86-F |
|---|---|
| Manufacturer: | Bel Fuse Inc. |
| Product Category: | Pulse Transformers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MODULE XFRMR LAN 10B-T SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | S553-5999-86-F Datasheet |
| Internal Part Number | 898-S553-5999-86-F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Bel Fuse's LAN Discrete Transformer Modules Magnetics Solutions | |
| Category | Transformers | |
| Family | Pulse Transformers | |
| Manufacturer | Bel Fuse Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Transformer Type | - | |
| Inductance | 110µH | |
| Turns Ratio - Primary:Secondary | 1CT : 2CT Transmitter, 1CT : 1CT Receiver | |
| E.T. | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 12.70mm L x 7.24mm W | |
| Height - Seated (Max) | 5.72mm | |
| Standard Package | 900 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | S553-5999-86-F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
S553-5999-86-F is in stock for immediate shipping now. We are the distributor of Bel Fuse Inc. all series components. The condition of S553-5999-86-F is new and unused, you can buy S553-5999-86-F Bel Fuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S553-5999-86-F.
