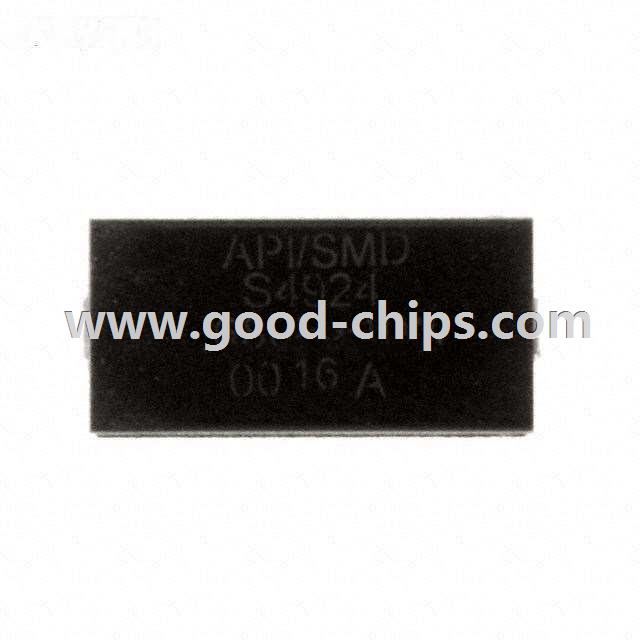

S4924-681K

S4924-681K
Manufacturer Part Number:S4924-681K
Manufacturer:
Product Category:Fixed Inductors
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:680nH Shielded Inductor 915mA 450 mOhm Max Nonstandard
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: S4924-681K Datasheet
S4924-681K´s Parameters
Internal Part Number898-S4924-681K
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryInductors, Coils, Chokes
FamilyFixed Inductors
ManufacturerAPI Delevan Inc.
SeriesS4924
PackagingTape & Reel (TR)
Part StatusActive
Type-
Material - CorePhenolic
Inductance680nH
Tolerance±10%
Current Rating915mA
Current - Saturation915mA
ShieldingShielded
DC Resistance (DCR)450 mOhm Max
Q @ Freq42 @ 25MHz
Frequency - Self Resonant190MHz
Ratings-
Operating Temperature-55°C ~ 125°C
Frequency - Test25MHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max)0.220" (5.58mm)
Standard Package 800
Weight0.001 KG
ApplicationEmail for details
Replacement PartS4924-681K
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

S4924-681K is in stock for immediate shipping now. We are the distributor of API Delevan Inc. all series components. The condition of S4924-681K is new and unused, you can buy S4924-681K API Delevan Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for S4924-681K.
