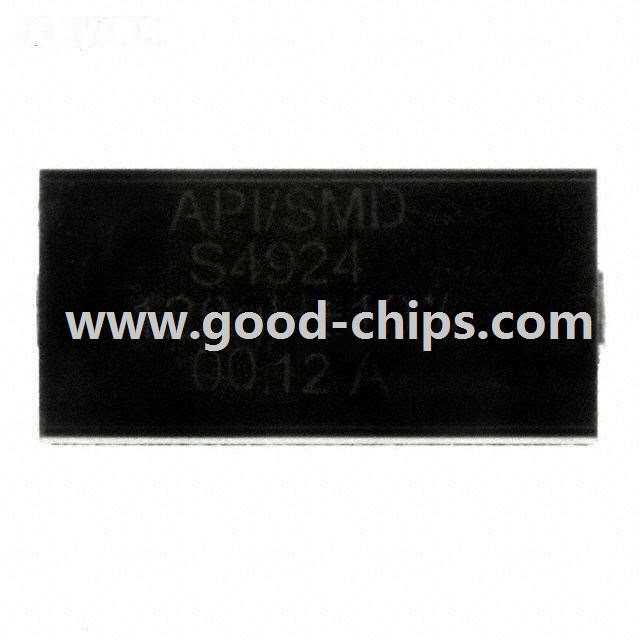

| Manufacturer Part Number: | S4924-124K |
|---|---|
| Manufacturer: | API Delevan Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 120µH Shielded Inductor 291mA 3.6 Ohm Max Nonstandard |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | S4924-124K Datasheet |
| Internal Part Number | 898-S4924-124K | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | API Delevan Inc. | |
| Series | S4924 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | - | |
| Material - Core | Ferrite | |
| Inductance | 120µH | |
| Tolerance | ±10% | |
| Current Rating | 291mA | |
| Current - Saturation | 98mA | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 3.6 Ohm Max | |
| Q @ Freq | 55 @ 790kHz | |
| Frequency - Self Resonant | 9.7MHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 790kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.505" L x 0.240" W (12.82mm x 6.09mm) | |
| Height - Seated (Max) | 0.220" (5.58mm) | |
| Standard Package | 800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | S4924-124K | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
S4924-124K is in stock for immediate shipping now. We are the distributor of API Delevan Inc. all series components. The condition of S4924-124K is new and unused, you can buy S4924-124K API Delevan Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S4924-124K.
