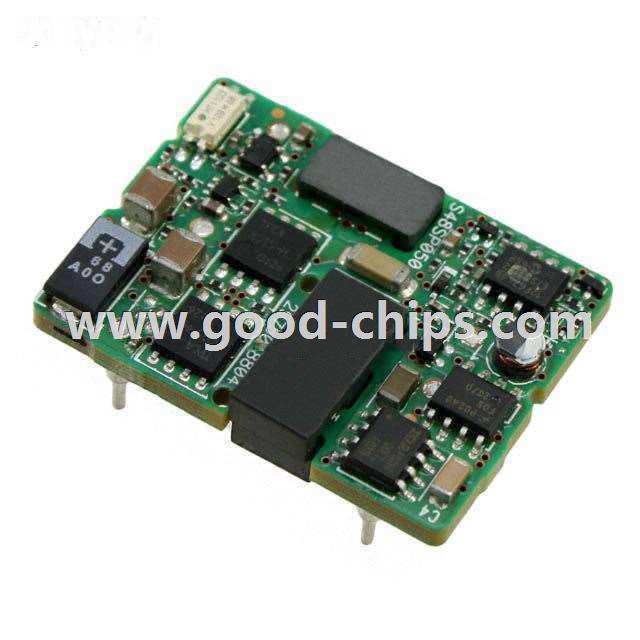

| Manufacturer Part Number: | S48SP12003NRFB |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MODULE DC/DC 1X1 12V 3A |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | S48SP12003NRFB Datasheet |
| Internal Part Number | 898-S48SP12003NRFB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | S48SP Series Evaluation Procedure | |
| Product Training Modules | High Efficiency Isolated DC/DC Converters Isolated DC/DC Converter Design Considerations | |
| Featured Product | Delphi Series S48SP Series Converter DC/DC Converters – Delta Product Groups | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Delta Electronics | |
| Series | Delphi S48SP | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Isolated Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 36V | |
| Voltage - Input (Max) | 75V | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 3A | |
| Power (Watts) - Manufacture Series | 36W | |
| Voltage - Isolation | 2.25kV (2250V) | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 6-DIP Module, 1x1 Brick | |
| Size / Dimension | 1.30" L x 0.96" W x 0.34" H (33.0mm x 24.4mm x 8.6mm) | |
| Operating Temperature | -40°C ~ 113°C | |
| Efficiency | 90% | |
| Power (Watts) - Max | 36W | |
| Standard Package | 28 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | S48SP12003NRFB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
S48SP12003NRFB is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of S48SP12003NRFB is new and unused, you can buy S48SP12003NRFB Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S48SP12003NRFB.
