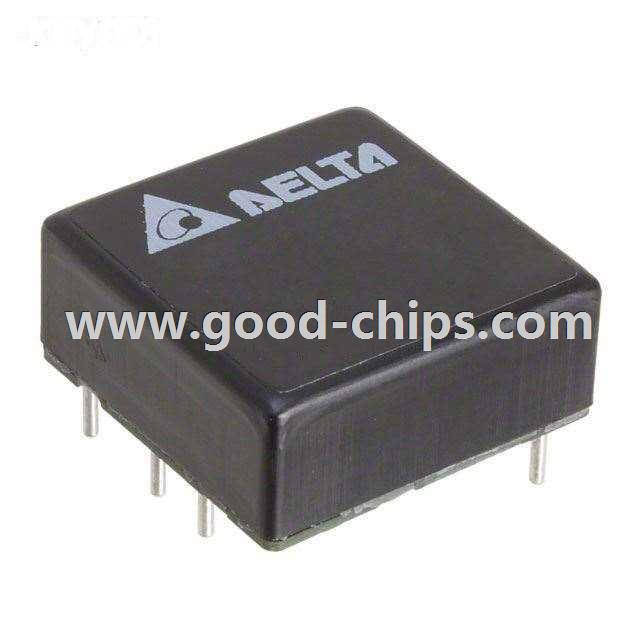

| Manufacturer Part Number: | S24DE120R6NDFA |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CONVERTER 15W +/-12V 625MA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | S24DE120R6NDFA Datasheet |
| Internal Part Number | 898-S24DE120R6NDFA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | DC/DC Converters – Delta Product Groups S24SE and S24DE Series DC/DC Converters | |
| Online Catalog | S24DE/S24SE Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Delta Electronics | |
| Series | S24DE | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | Isolated Module | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 9V | |
| Voltage - Input (Max) | 36V | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | -12V | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 625mA, 625mA | |
| Power (Watts) - Manufacture Series | 15W | |
| Voltage - Isolation | 1.6kV (1600V) | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 6-DIP Module | |
| Size / Dimension | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 87.5% | |
| Power (Watts) - Max | 15W | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | S24DE120R6NDFA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
S24DE120R6NDFA is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of S24DE120R6NDFA is new and unused, you can buy S24DE120R6NDFA Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S24DE120R6NDFA.
