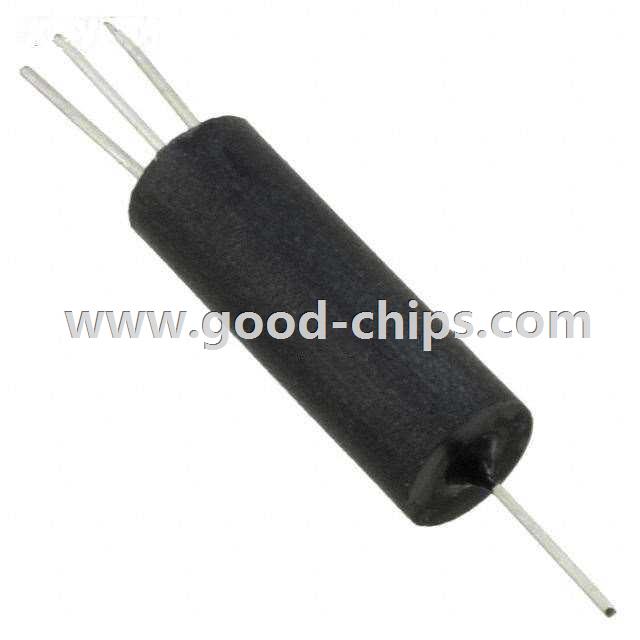

Manufacturer Part Number: | S2-03P |
---|---|
Manufacturer: | Cynergy 3 |
Product Category: | Signal Relays, Up to 2 Amps |
Available Quantity: | 9022 Pieces |
Unit Price: | Quote by Email |
Description: | Reed Relay SPST-NO (1 Form A) Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | S2-03P Datasheet |
Internal Part Number | 898-S2-03P | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | S2 Series | |
Category | Relays | |
Family | Signal Relays, Up to 2 Amps | |
Manufacturer | Cynergy 3 | |
Series | S2 | |
Packaging | Bulk | |
Part Status | Active | |
Relay Type | Reed | |
Coil Type | Non Latching | |
Coil Current | 12mA | |
Coil Voltage | 3VDC | |
Contact Form | SPST-NO (1 Form A) | |
Contact Rating (Current) | 250mA | |
Switching Voltage | 140VAC, 200VDC - Max | |
Turn On Voltage (Max) | 2.25 VDC | |
Turn Off Voltage (Min) | 0.5 VDC | |
Operate Time | 0.1ms | |
Release Time | 0.07ms | |
Features | - | |
Mounting Type | Through Hole | |
Termination Style | Axial | |
Contact Material | Rhodium (Rh) | |
Coil Power | 36 mW | |
Coil Resistance | 250 Ohms | |
Operating Temperature | -40°C ~ 85°C | |
Standard Package | 60 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | S2-03P | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
S2-03P is in stock for immediate shipping now. We are the distributor of Cynergy 3 all series components. The condition of S2-03P is new and unused, you can buy S2-03P Cynergy 3 with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S2-03P.
