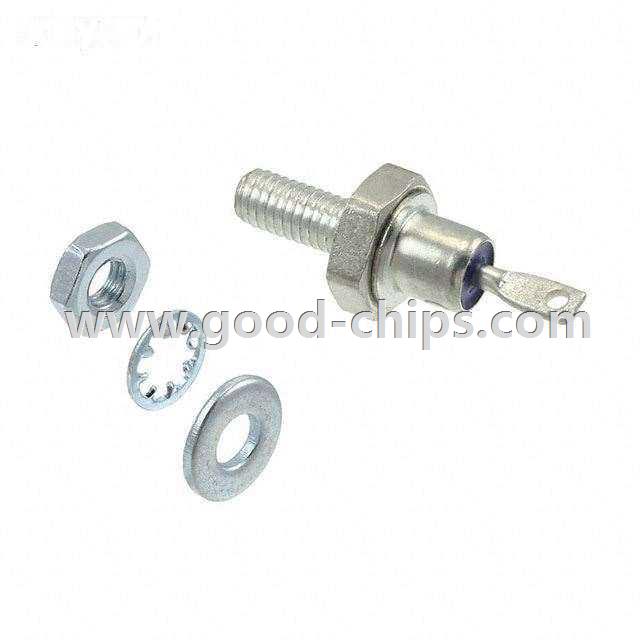

S16Q

S16Q
Manufacturer Part Number:S16Q
Manufacturer:
Product Category:Diodes - Rectifiers - Single
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:Diode Standard 1200V (1.2kV) 16A Chassis, Stud Mount
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: S16Q Datasheet
S16Q´s Parameters
Internal Part Number898-S16Q
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog Standard Diode
CategoryDiscrete Semiconductor Products
FamilyDiodes - Rectifiers - Single
ManufacturerGeneSiC Semiconductor
Series-
PackagingBulk
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)1200V (1.2kV)
Current - Average Rectified (Io)16A
Voltage - Forward (Vf) (Max) @ If1.1V @ 16A
SpeedStandard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr10µA @ 50V
Capacitance @ Vr, F-
Mounting TypeChassis, Stud Mount
Package / CaseDO-203AA, DO-4, Stud
Supplier Device Package-
Operating Temperature - Junction-65°C ~ 175°C
Standard Package 5
Weight0.001 KG
ApplicationEmail for details
Replacement PartS16Q
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

S16Q is in stock for immediate shipping now. We are the distributor of GeneSiC Semiconductor all series components. The condition of S16Q is new and unused, you can buy S16Q GeneSiC Semiconductor with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for S16Q.
