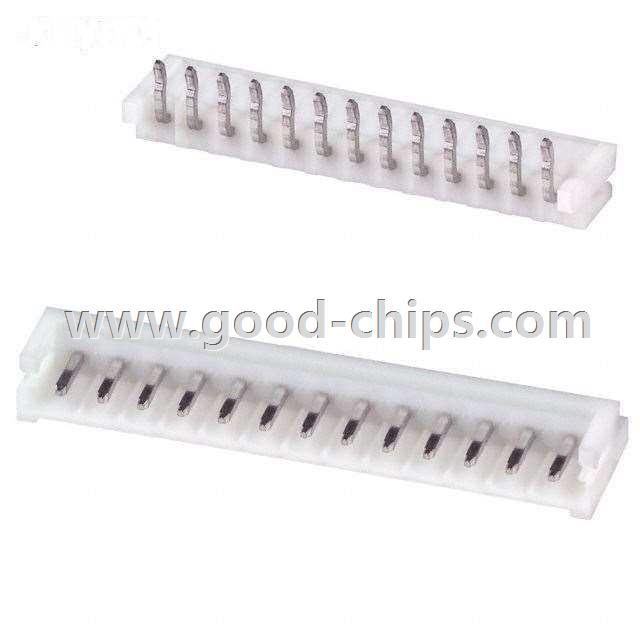

S13B-EH(LF)(SN)

S13B-EH(LF)(SN)
Manufacturer Part Number:S13B-EH(LF)(SN)
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:13 Positions Header, Shrouded Connector 0.098" (2.50mm) Through Hole, Right Angle Tin
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: S13B-EH(LF)(SN) Datasheet
S13B-EH(LF)(SN)´s Parameters
Internal Part Number898-S13B-EH(LF)(SN)
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerJST Sales America Inc.
SeriesEH
PackagingBulk
Part StatusActive
Contact TypeMale Pin
Connector TypeHeader, Shrouded
Number of Positions13
Number of Positions LoadedAll
Pitch0.098" (2.50mm)
Number of Rows1
Row Spacing-
Contact Mating Length0.157" (4.00mm)
Mounting TypeThrough Hole, Right Angle
TerminationPress-Fit
Fastening TypeLatch Lock
Features-
Contact FinishTin
Contact Finish Thickness-
ColorNatural
Standard Package 250
Weight0.001 KG
ApplicationEmail for details
Replacement PartS13B-EH(LF)(SN)
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

S13B-EH(LF)(SN) is in stock for immediate shipping now. We are the distributor of JST Sales America Inc. all series components. The condition of S13B-EH(LF)(SN) is new and unused, you can buy S13B-EH(LF)(SN) JST Sales America Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for S13B-EH(LF)(SN).
