| Manufacturer Part Number: | S-8330A24FS-T2-G |
|---|---|
| Manufacturer: | SII Semiconductor Corporation |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Boost Switching Regulator IC Positive Adjustable 12V 1 Output 300mA (Switch) 8-LSSOP (0.173", 4.40mm Width) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | S-8330A24FS-T2-G Datasheet |
| Internal Part Number | 898-S-8330A24FS-T2-G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | S-8330 Series 18/Feb/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | SII Semiconductor Corporation | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Function | Step-Up | |
| Output Configuration | Positive | |
| Topology | Boost | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 2V | |
| Voltage - Input (Max) | 9V | |
| Voltage - Output (Min/Fixed) | 12V | |
| Voltage - Output (Max) | 24V | |
| Current - Output | 300mA (Switch) | |
| Frequency - Switching | 180kHz | |
| Synchronous Rectifier | No | |
| Operating Temperature | -20°C ~ 70°C (TA) | |
| Mounting Type | Surface Mount | |

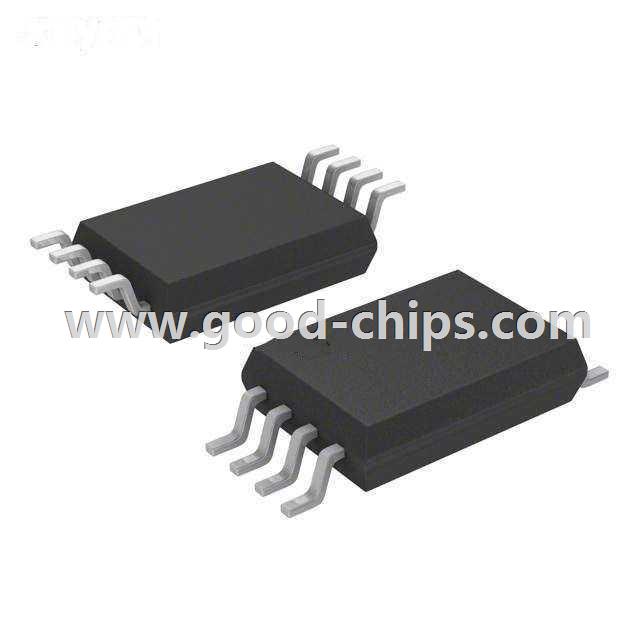

| Package / Case | 8-LSSOP (0.173", 4.40mm Width) | |
| Supplier Device Package | 8-SSOP | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | S-8330A24FS-T2-G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
S-8330A24FS-T2-G is in stock for immediate shipping now. We are the distributor of SII Semiconductor Corporation all series components. The condition of S-8330A24FS-T2-G is new and unused, you can buy S-8330A24FS-T2-G SII Semiconductor Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S-8330A24FS-T2-G.
