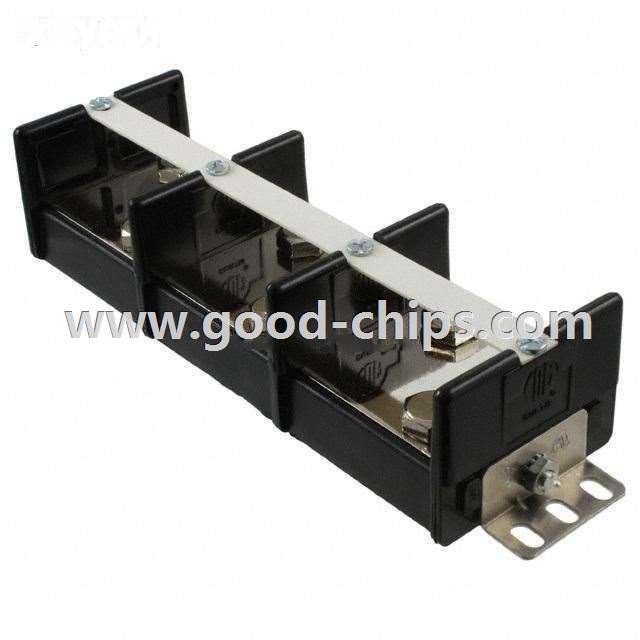

S-3

S-3
Manufacturer Part Number:S-3
Manufacturer:
Product Category:Terminal Blocks - Barrier Blocks
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:3 Circuit 2.420" (61.47mm) Barrier Block Connector, Screws
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: S-3 Datasheet
S-3´s Parameters
Internal Part Number898-S-3
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyTerminal Blocks - Barrier Blocks
ManufacturerCurtis Industries
SeriesS
PackagingBulk
Part StatusActive
Terminal Block TypeBarrier Block
Number of Circuits3
Number of Wire Entries6
Pitch2.420" (61.47mm)
Number of Rows2
Current Rating225A
Voltage Rating600V
Wire Gauge4/0 AWG
Top TerminationScrews
Bottom TerminationClosed
Barrier Type2 Wall (Dual)
FeaturesFlange
Color-
Terminal Screw MaterialSteel
Terminal Screw Finish-
Mounting TypeChassis, Panel
Operating Temperature150°C
Material - InsulationPhenol Formaldehyde (Phenolic)
Material Flammability RatingUL94 V-1
Standard Package 10
Weight0.001 KG
ApplicationEmail for details
Replacement PartS-3
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

S-3 is in stock for immediate shipping now. We are the distributor of Curtis Industries all series components. The condition of S-3 is new and unused, you can buy S-3 Curtis Industries with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for S-3.
