Manufacturer Part Number: | S-2010A |
---|---|
Manufacturer: | Copal Electronics Inc. |
Product Category: | DIP Switches |
Available Quantity: | 10225 Pieces |
Unit Price: | Quote by Email |

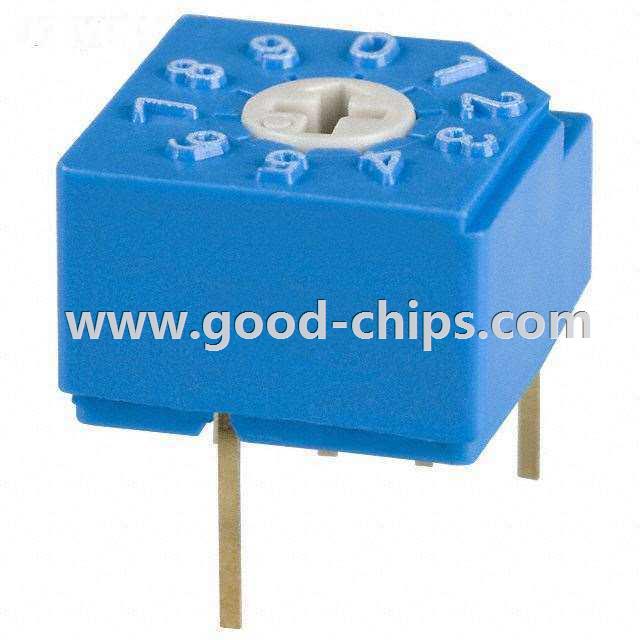

Description: | Dip Switch BCD 10 Position Through Hole Rotary for Tool Actuator 100mA 5VDC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | S-2010A Datasheet |
Internal Part Number | 898-S-2010A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | 3D CAD Models | |
3D Model | S-2010A | |
Online Catalog | S-2000A Series | |
Category | Switches | |
Family | DIP Switches | |
Manufacturer | Copal Electronics Inc. | |
Series | S-2000A | |
Packaging | Bulk | |
Part Status | Active | |
Circuit | BCD | |
Number of Positions | 10 | |
Current Rating | 100mA | |
Voltage Rating | 5VDC | |
Actuator Type | Rotary for Tool | |
Actuator Level | Flush, Recessed | |
Contact Material | Copper Alloy | |
Contact Finish | Gold | |
Height Above Board | 0.275" (6.99mm) | |
Mounting Type | Through Hole | |
Termination Style | PC Pin | |
Pitch | 0.100" (2.54mm), Full | |
Washable | Yes | |
Features | - | |
Body Material | Polybutylene Terephthalate (PBT) | |
Length | 0.393" (10.00mm) | |
Operating Temperature | -40°C ~ 85°C | |
Mechanical Life | - | |
Electrical Life | 10,000 Steps | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | S-2010A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
S-2010A is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of S-2010A is new and unused, you can buy S-2010A Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S-2010A.
