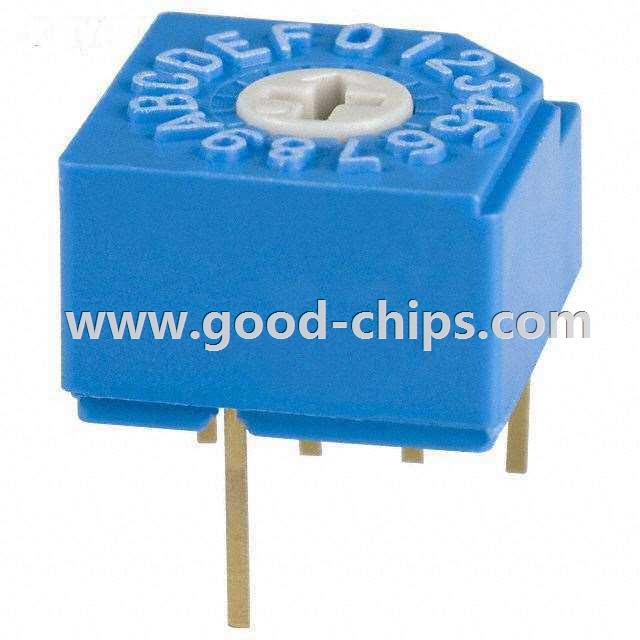

| Manufacturer Part Number: | S-1010A |
|---|---|
| Manufacturer: | Copal Electronics Inc. |
| Product Category: | DIP Switches |
| Available Quantity: | 10113 Pieces |
| Unit Price: | Quote by Email |
| Description: | Dip Switch Hexadecimal 16 Position Through Hole Rotary for Tool Actuator 100mA 5VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | S-1010A Datasheet |
| Internal Part Number | 898-S-1010A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | 3D CAD Models | |
| 3D Model | S-1010A | |
| Online Catalog | S-1000A Series | |
| Category | Switches | |
| Family | DIP Switches | |
| Manufacturer | Copal Electronics Inc. | |
| Series | S-1000A | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | Hexadecimal | |
| Number of Positions | 16 | |
| Current Rating | 100mA | |
| Voltage Rating | 5VDC | |
| Actuator Type | Rotary for Tool | |
| Actuator Level | Flush, Recessed | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Height Above Board | 0.275" (6.99mm) | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Pitch | 0.100" (2.54mm), Full | |
| Washable | Yes | |
| Features | - | |
| Body Material | Polybutylene Terephthalate (PBT) | |
| Length | 0.393" (10.00mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Mechanical Life | - | |
| Electrical Life | 10,000 Steps | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | S-1010A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
S-1010A is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of S-1010A is new and unused, you can buy S-1010A Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S-1010A.
