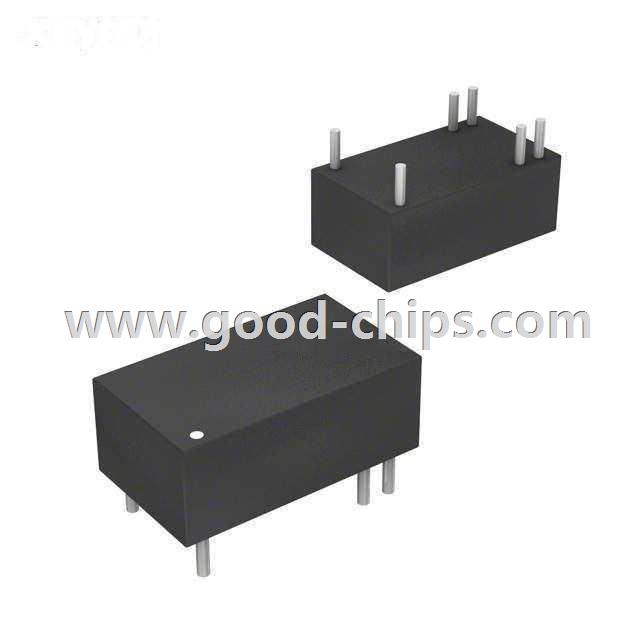

| Manufacturer Part Number: | RW2-2415D/H3/B |
|---|---|
| Manufacturer: | Recom Power |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONV DC/DC 2W 18-36VIN +/-15VOUT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RW2-2415D/H3/B Datasheet |
| Internal Part Number | 898-RW2-2415D/H3/B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Recom Power | |
| Series | ECONOLINE RW2 | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | Isolated Module | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 18V | |
| Voltage - Input (Max) | 36V | |
| Voltage - Output 1 | 15V | |
| Voltage - Output 2 | -15V | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 67mA, 67mA | |
| Power (Watts) - Manufacture Series | 2W | |
| Voltage - Isolation | 3kV (3000V) | |
| Applications | ITE (Commercial), Medical | |
| Features | SCP | |
| Mounting Type | Through Hole | |
| Package / Case | 16-DIP Module (6 Leads) | |
| Size / Dimension | 0.87" L x 0.49" W x 0.33" H (22.1mm x 12.6mm x 8.5mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 83% | |
| Power (Watts) - Max | 2W | |
| Standard Package | 22 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RW2-2415D/H3/B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RW2-2415D/H3/B is in stock for immediate shipping now. We are the distributor of Recom Power all series components. The condition of RW2-2415D/H3/B is new and unused, you can buy RW2-2415D/H3/B Recom Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RW2-2415D/H3/B.
