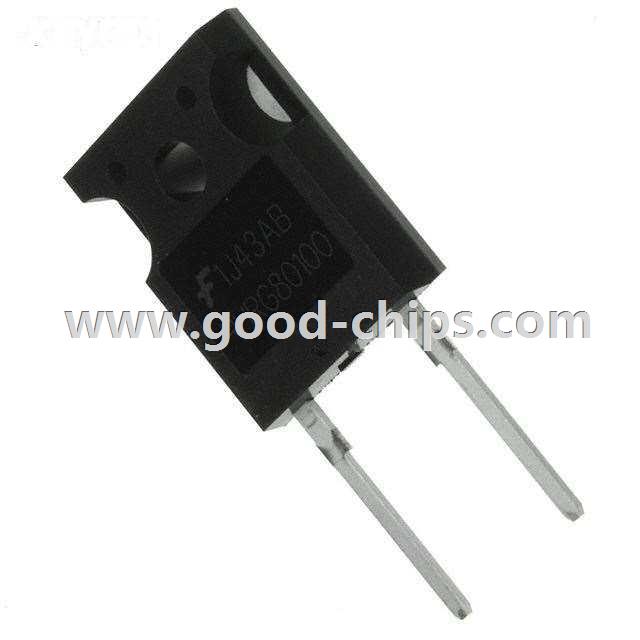

Manufacturer Part Number: | RURG80100 |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 10585 Pieces |
Unit Price: | Quote by Email |
Description: | DIODE GEN PURP 1KV 80A TO247 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RURG80100 Datasheet |
Internal Part Number | 898-RURG80100 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Plating Material 20/Dec/2007 | |
PCN Assembly/Origin | Wafer Size Update 29/Sep/2014 Assembly Site Transfer 06/Apr/2015 | |
PCN Packaging | Tape and Box/Reel Barcode Update 07/Aug/2014 | |
Online Catalog | Standard Diode | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | Fairchild Semiconductor | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Diode Type | Standard | |
Voltage - DC Reverse (Vr) (Max) | 1000V (1kV) | |
Current - Average Rectified (Io) | 80A | |
Voltage - Forward (Vf) (Max) @ If | 1.9V @ 80A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | 200ns | |
Current - Reverse Leakage @ Vr | 250µA @ 1000V | |
Capacitance @ Vr, F | - | |
Mounting Type | Through Hole | |
Package / Case | TO-247-2 | |
Supplier Device Package | TO-247 | |
Operating Temperature - Junction | -65°C ~ 175°C | |
Standard Package | 30 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RURG80100 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RURG80100 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of RURG80100 is new and unused, you can buy RURG80100 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RURG80100.
