| Manufacturer Part Number: | RTE0302N01 |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | DIP Switches |
| Available Quantity: | 10117 Pieces |
| Unit Price: | Quote by Email |

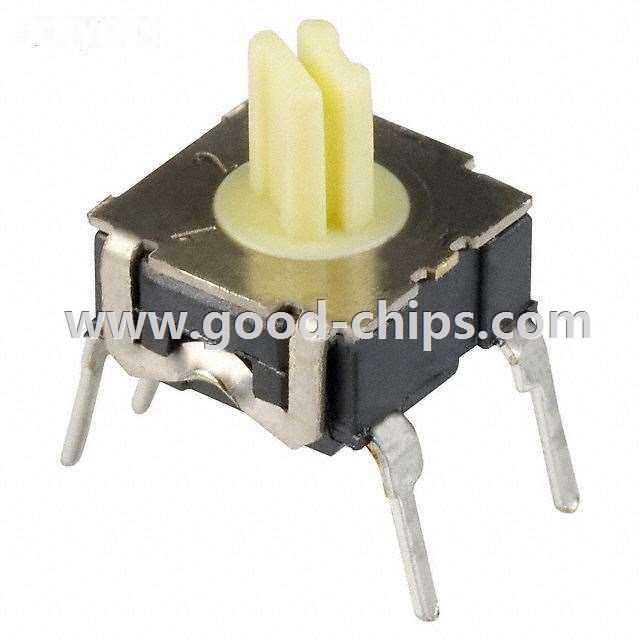

| Description: | Dip Switch SP3T 3 Position Through Hole Rotary with Shaft Actuator 100mA 50VDC |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RTE0302N01 Datasheet |
| Internal Part Number | 898-RTE0302N01 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Industrial Switches – C&K Components | DigiKey | |
| PCN Obsolescence/ EOL | RTE Series 02/Jun/2009 | |
| PCN Design/Specification | RTE New Marking 15/Aug/2007 RTE02, 03 Color 26/Jun/2009 | |
| Category | Switches | |
| Family | DIP Switches | |
| Manufacturer | C&K Components | |
| Series | RTE | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Circuit | SP3T | |
| Number of Positions | 3 | |
| Current Rating | 100mA | |
| Voltage Rating | 50VDC | |
| Actuator Type | Rotary with Shaft | |
| Actuator Level | Raised | |
| Contact Material | Bronze | |
| Contact Finish | Silver | |
| Height Above Board | 0.321" (8.15mm) | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Pitch | 0.100" (2.54mm), Full | |
| Washable | No | |
| Features | - | |
| Body Material | Polyphenylene Sulfide (PPS) | |
| Length | 0.291" (7.40mm) | |
| Operating Temperature | -25°C ~ 85°C | |
| Mechanical Life | 1,500 Steps | |
| Electrical Life | - | |
| Standard Package | 65 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RTE0302N01 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RTE0302N01 is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of RTE0302N01 is new and unused, you can buy RTE0302N01 C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RTE0302N01.
