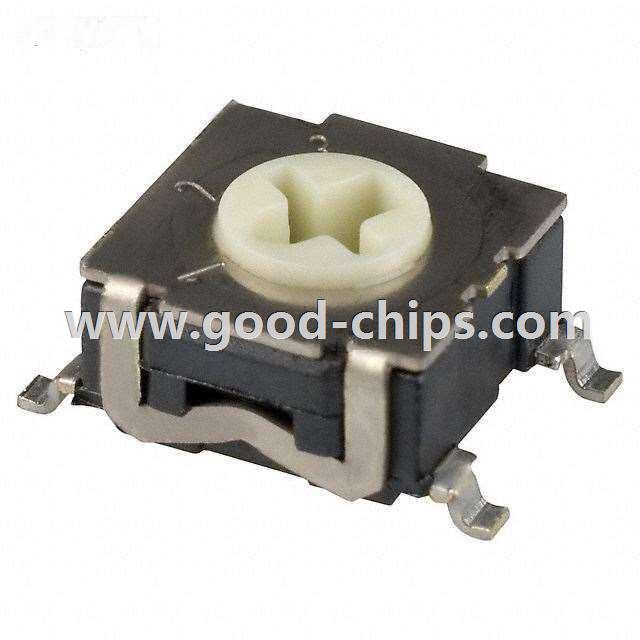

Manufacturer Part Number: | RTE0300G04 |
---|---|
Manufacturer: | C&K Components |
Product Category: | DIP Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Dip Switch SP3T 3 Position Surface Mount Rotary for Tool Actuator 100mA 30VDC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RTE0300G04 Datasheet |
Internal Part Number | 898-RTE0300G04 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Introduction to Electromechanical Switches | |
Featured Product | Industrial Switches – C&K Components | DigiKey | |
PCN Obsolescence/ EOL | RTV Versions07/Apr/2015 | |
PCN Design/Specification | RTE New Marking 15/Aug/2007 RTE02, 03 Color 26/Jun/2009 | |
Category | Switches | |
Family | DIP Switches | |
Manufacturer | C&K Components | |
Series | RTE | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Circuit | SP3T | |
Number of Positions | 3 | |
Current Rating | 100mA | |
Voltage Rating | 30VDC | |
Actuator Type | Rotary for Tool | |
Actuator Level | Flush, Recessed | |
Contact Material | Bronze | |
Contact Finish | Gold | |
Height Above Board | 0.168" (4.27mm) | |
Mounting Type | Surface Mount | |
Termination Style | Gull Wing | |
Pitch | 0.100" (2.54mm), Full | |
Washable | No | |
Features | - | |
Body Material | Polyphenylene Sulfide (PPS) | |
Length | 0.291" (7.40mm) | |
Operating Temperature | -25°C ~ 85°C | |
Mechanical Life | 1,500 Steps | |
Electrical Life | - | |
Standard Package | 1,250 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RTE0300G04 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RTE0300G04 is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of RTE0300G04 is new and unused, you can buy RTE0300G04 C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RTE0300G04.
