| Manufacturer Part Number: | RTD-1524/P-R |
|---|---|
| Manufacturer: | Recom Power |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONV DC/DC 2W 15VIN +/-24VOUT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RTD-1524/P-R Datasheet |
| Internal Part Number | 898-RTD-1524/P-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Recom Power | |
| Series | ECONOLINE RTD | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Isolated Module | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 13.5V | |
| Voltage - Input (Max) | 16.5V | |
| Voltage - Output 1 | 24V | |
| Voltage - Output 2 | -24V | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 42mA, 42mA | |
| Power (Watts) - Manufacture Series | 2W | |
| Voltage - Isolation | 1kV (1000V) | |
| Applications | ITE (Commercial) | |
| Features | SCP | |
| Mounting Type | Surface Mount | |

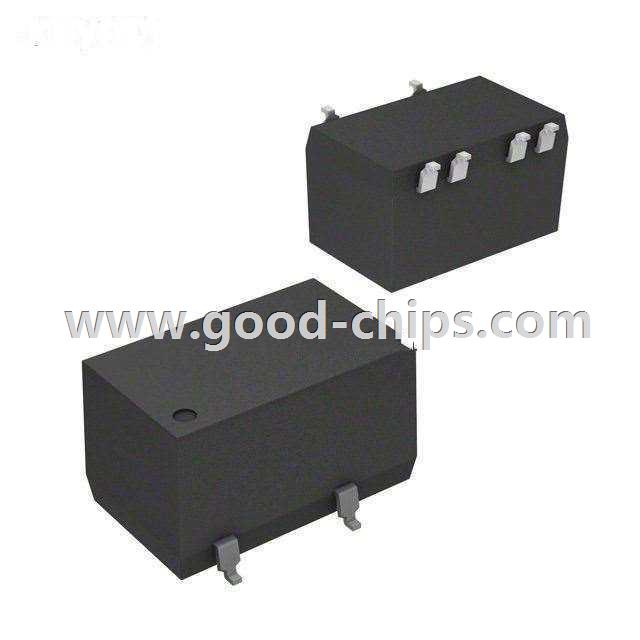

| Package / Case | 10-SMD Module (6 Leads) | |
| Size / Dimension | 0.60" L x 0.37" W x 0.35" H (15.2mm x 9.3mm x 9.0mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 85% | |
| Power (Watts) - Max | 2W | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RTD-1524/P-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RTD-1524/P-R is in stock for immediate shipping now. We are the distributor of Recom Power all series components. The condition of RTD-1524/P-R is new and unused, you can buy RTD-1524/P-R Recom Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RTD-1524/P-R.
