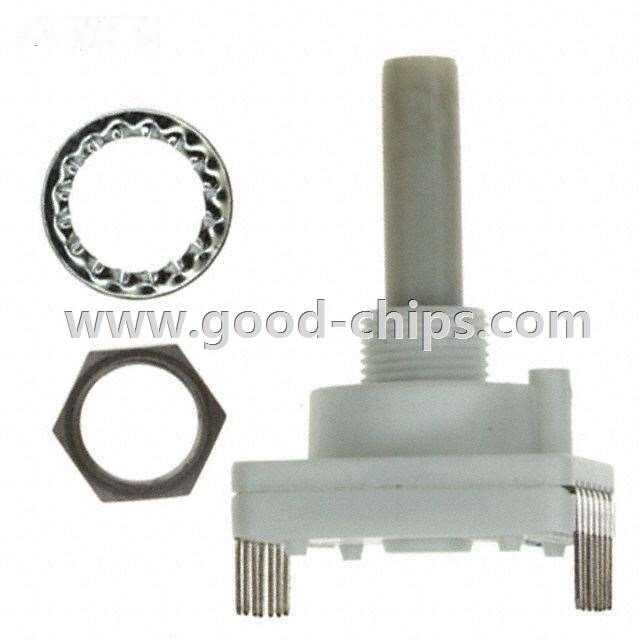

| Manufacturer Part Number: | RTAP31S07M25NS |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Rotary Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Rotary Switch 7 Position SP7T 150mA (AC/DC) 60VAC Panel Mount, Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RTAP31S07M25NS Datasheet |
| Internal Part Number | 898-RTAP31S07M25NS | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Switches | |
| Family | Rotary Switches | |
| Manufacturer | C&K Components | |
| Series | RTA | |
| Part Status | Active | |
| Number of Positions | 7 | |
| Index Stops | Fixed | |
| Number of Decks | 1 | |
| Number of Poles per Deck | 1 | |
| Circuit per Deck | SP7T | |
| Contact Timing | Non-Shorting (BBM) | |
| Current Rating | 150mA (AC/DC) | |
| Voltage Rating - AC | 60V | |
| Voltage Rating - DC | 60V | |
| Actuator Type | Round (6mm Dia), Slotted | |
| Actuator Length | 25.00mm | |
| Angle of Throw | 30° | |
| Contact Material | Brass | |
| Contact Finish | Silver | |
| Mounting Type | Panel Mount, Through Hole | |
| Termination Style | PC Pin | |
| Features | - | |
| Depth Behind Panel | 12.60mm | |
| Panel Cutout Dimensions | Circular - 10.20mm Dia | |
| Operating Force, Torque | 5 N-cm | |
| Standard Package | 48 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RTAP31S07M25NS | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RTAP31S07M25NS is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of RTAP31S07M25NS is new and unused, you can buy RTAP31S07M25NS C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RTAP31S07M25NS.
