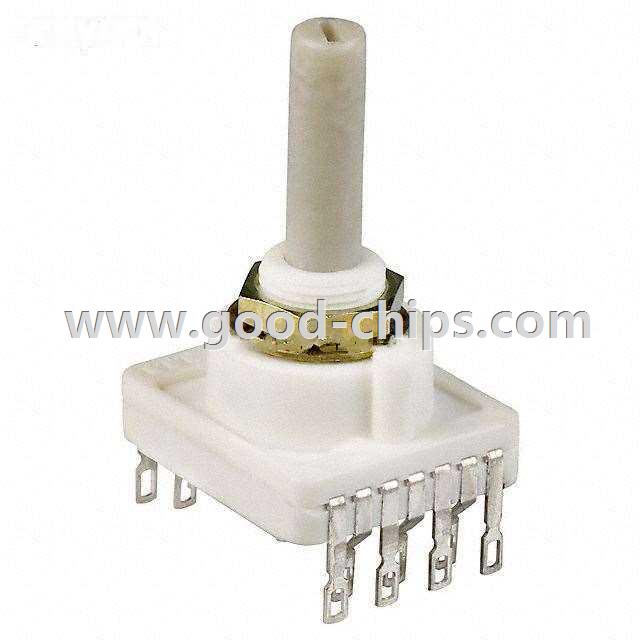

Manufacturer Part Number: | RTAC225BSAD25S |
---|---|
Manufacturer: | C&K Components |
Product Category: | Rotary Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Rotary Switch Position BCD 150mA (AC/DC) 60VAC Panel Mount |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RTAC225BSAD25S Datasheet |
Internal Part Number | 898-RTAC225BSAD25S | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Switches | |
Family | Rotary Switches | |
Manufacturer | C&K Components | |
Series | RTA | |
Part Status | Obsolete | |
Number of Positions | - | |
Index Stops | Continuous | |
Number of Decks | 1 | |
Number of Poles per Deck | - | |
Circuit per Deck | BCD | |
Contact Timing | Non-Shorting (BBM) | |
Current Rating | 150mA (AC/DC) | |
Voltage Rating - AC | 60V | |
Voltage Rating - DC | 60V | |
Actuator Type | Round (5.9mm Dia) | |
Actuator Length | 25.00mm | |
Angle of Throw | 22.5° | |
Contact Material | Brass | |
Contact Finish | Silver | |
Mounting Type | Panel Mount | |
Termination Style | Solder Lug | |
Features | - | |
Depth Behind Panel | 18.70mm | |
Panel Cutout Dimensions | Circular - 10.20mm Dia | |
Operating Force, Torque | 5 N-cm | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RTAC225BSAD25S | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RTAC225BSAD25S is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of RTAC225BSAD25S is new and unused, you can buy RTAC225BSAD25S C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RTAC225BSAD25S.
