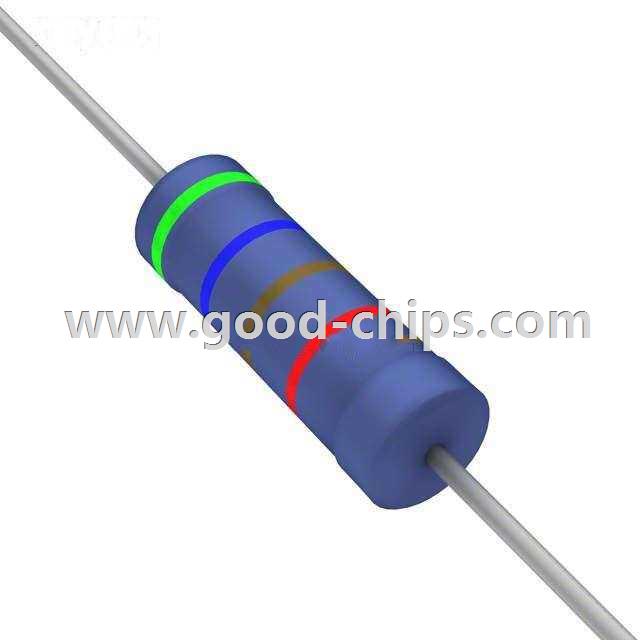

| Manufacturer Part Number: | RSF2GB560R |
|---|---|
| Manufacturer: | Stackpole Electronics Inc. |
| Product Category: | Through Hole Resistors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES MO 2W 560 OHM 2% AXIAL |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RSF2GB560R Datasheet |
| Internal Part Number | 898-RSF2GB560R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Compliance | |
| PCN Design/Specification | RSF2, RSMF3 Lead Length 30/Oct/2012 | |
| PCN Part Number | Global Part Number 9/Aug/2010 | |
| Category | Resistors | |
| Family | Through Hole Resistors | |
| Manufacturer | Stackpole Electronics Inc. | |
| Series | RSF | |
| Packaging | Bulk | |
| Part Status | Active | |
| Resistance (Ohms) | 560 | |
| Tolerance | ±2% | |
| Power (Watts) | 2W | |
| Composition | Metal Oxide Film | |
| Features | Flame Proof, Safety | |
| Temperature Coefficient | ±200ppm/°C | |
| Operating Temperature | -55°C ~ 235°C | |
| Package / Case | Axial | |
| Supplier Device Package | Axial | |
| Size / Dimension | 0.197" Dia x 0.591" L (5.00mm x 15.00mm) | |
| Height | - | |
| Number of Terminations | 2 | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RSF2GB560R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RSF2GB560R is in stock for immediate shipping now. We are the distributor of Stackpole Electronics Inc. all series components. The condition of RSF2GB560R is new and unused, you can buy RSF2GB560R Stackpole Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RSF2GB560R.
