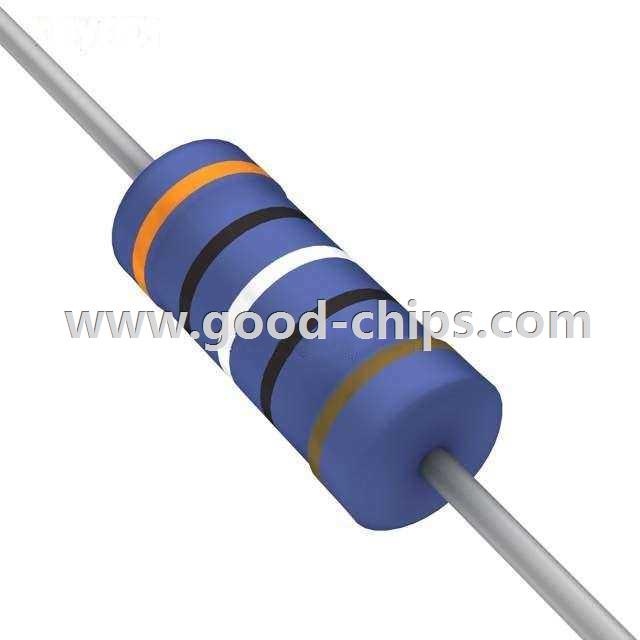

| Manufacturer Part Number: | RSF1FB309R |
|---|---|
| Manufacturer: | Stackpole Electronics Inc. |
| Product Category: | Through Hole Resistors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES MO 1W 309 OHM 1% AXIAL |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RSF1FB309R Datasheet |
| Internal Part Number | 898-RSF1FB309R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Compliance | |
| PCN Part Number | Global Part Number 9/Aug/2010 | |
| Category | Resistors | |
| Family | Through Hole Resistors | |
| Manufacturer | Stackpole Electronics Inc. | |
| Series | RSF | |
| Packaging | Bulk | |
| Part Status | Active | |
| Resistance (Ohms) | 309 | |
| Tolerance | ±1% | |
| Power (Watts) | 1W | |
| Composition | Metal Oxide Film | |
| Features | Flame Proof, Safety | |
| Temperature Coefficient | ±200ppm/°C | |
| Operating Temperature | -55°C ~ 235°C | |
| Package / Case | Axial | |
| Supplier Device Package | Axial | |
| Size / Dimension | 0.177" Dia x 0.433" L (4.50mm x 11.00mm) | |
| Height | - | |
| Number of Terminations | 2 | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RSF1FB309R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RSF1FB309R is in stock for immediate shipping now. We are the distributor of Stackpole Electronics Inc. all series components. The condition of RSF1FB309R is new and unused, you can buy RSF1FB309R Stackpole Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RSF1FB309R.
