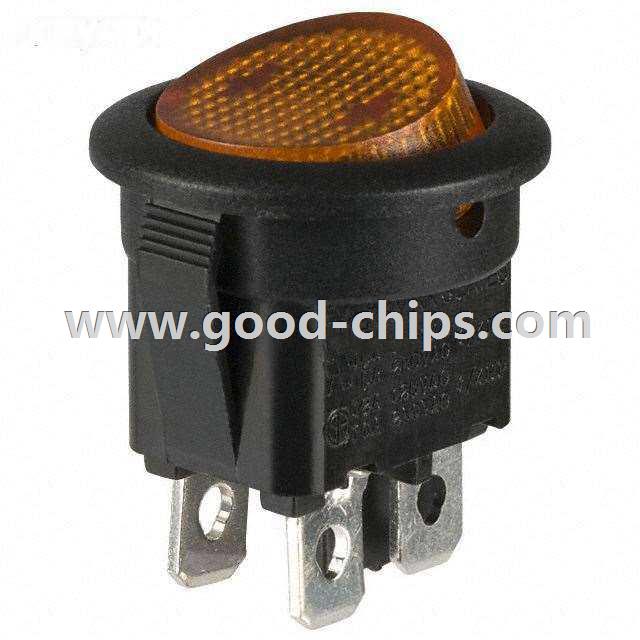

| Manufacturer Part Number: | RRA22H3BBALN |
|---|---|
| Manufacturer: | Cherry |
| Product Category: | Rocker Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Rocker Switch SPST 10A (AC) 125V Panel Mount, Snap-In |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RRA22H3BBALN Datasheet |
| Internal Part Number | 898-RRA22H3BBALN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Switches | |
| Family | Rocker Switches | |
| Manufacturer | Cherry | |
| Series | RR | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPST | |
| Switch Function | On-Off | |
| Current Rating | 10A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Round - Illuminated | |
| Color - Actuator/Cap | Amber | |
| Actuator Marking | No Marking | |
| Illumination Type, Color | Neon, Amber | |
| Illumination Voltage (Nominal) | 125 VAC | |
| Mounting Type | Panel Mount, Snap-In | |
| Termination Style | Quick Connect - 0.187" (4.7mm) | |
| Ingress Protection | - | |
| Features | - | |
| Panel Cutout Dimensions | Circular - 20.00mm Dia | |
| Operating Temperature | -20°C ~ 65°C | |
| Mechanical Life | 100,000 Cycles | |
| Electrical Life | 6,000 Cycles | |
| Standard Package | 1,200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RRA22H3BBALN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RRA22H3BBALN is in stock for immediate shipping now. We are the distributor of Cherry all series components. The condition of RRA22H3BBALN is new and unused, you can buy RRA22H3BBALN Cherry with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RRA22H3BBALN.
