Manufacturer Part Number: | RR3405ALRED |
---|---|
Manufacturer: | E-Switch |
Product Category: | Rocker Switches |
Available Quantity: | 10181 Pieces |
Unit Price: | Quote by Email |

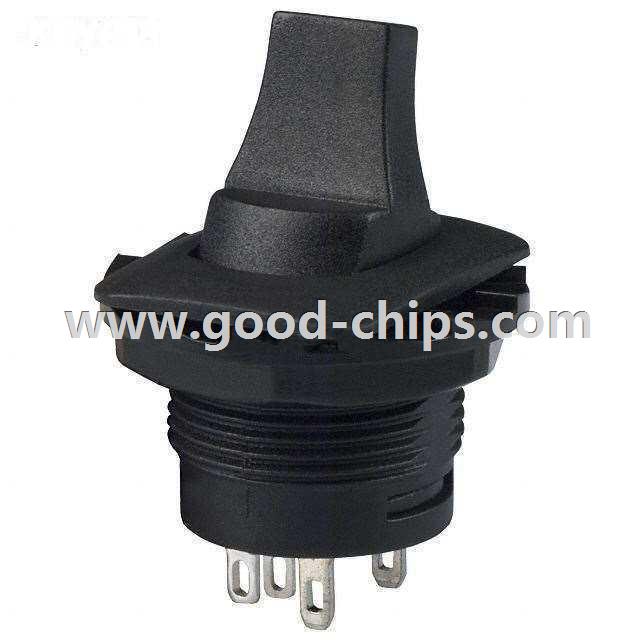

Description: | Rocker Switch SPST 10A (AC) 125V Panel Mount, Threaded Body with Nut |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RR3405ALRED Datasheet |
Internal Part Number | 898-RR3405ALRED | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Switch Basics Power Switch Overview | |
Online Catalog | RR3405 Series | |
Category | Switches | |
Family | Rocker Switches | |
Manufacturer | E-Switch | |
Series | RR3405 | |
Packaging | Bulk | |
Part Status | Active | |
Circuit | SPST | |
Switch Function | On-Off | |
Current Rating | 10A (AC) | |
Voltage Rating - AC | 125V | |
Voltage Rating - DC | - | |
Actuator Type | Paddle - Illuminated | |
Color - Actuator/Cap | Black | |
Actuator Marking | No Marking | |
Illumination Type, Color | LED, Red | |
Illumination Voltage (Nominal) | 2 VDC | |
Mounting Type | Panel Mount, Threaded Body with Nut | |
Termination Style | Solder Lug | |
Ingress Protection | - | |
Features | - | |
Panel Cutout Dimensions | Circular - 18.00mm Dia | |
Operating Temperature | - | |
Mechanical Life | - | |
Electrical Life | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RR3405ALRED | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RR3405ALRED is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of RR3405ALRED is new and unused, you can buy RR3405ALRED E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RR3405ALRED.
