Manufacturer Part Number: | RR3112ABLKBLKNAF0 |
---|---|
Manufacturer: | E-Switch |
Product Category: | Rocker Switches |
Available Quantity: | 10923 Pieces |
Unit Price: | Quote by Email |

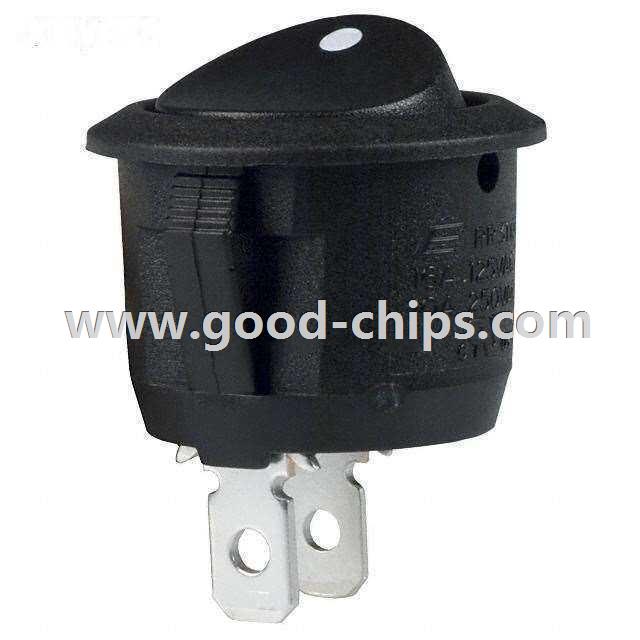

Description: | Rocker Switch SPST 16A (AC) 125V Panel Mount, Snap-In |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RR3112ABLKBLKNAF0 Datasheet |
Internal Part Number | 898-RR3112ABLKBLKNAF0 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Switch Basics Power Switch Overview | |
3D Model | RR3112ABLKBLKNAF0.stp | |
Online Catalog | RR3112 Series | |
Category | Switches | |
Family | Rocker Switches | |
Manufacturer | E-Switch | |
Series | RR3112 | |
Packaging | Bulk | |
Part Status | Active | |
Circuit | SPST | |
Switch Function | On-Off | |
Current Rating | 16A (AC) | |
Voltage Rating - AC | 125V | |
Voltage Rating - DC | - | |
Actuator Type | Round | |
Color - Actuator/Cap | Black | |
Actuator Marking | Dot | |
Illumination Type, Color | - | |
Illumination Voltage (Nominal) | - | |
Mounting Type | Panel Mount, Snap-In | |
Termination Style | Quick Connect - 0.187" (4.7mm) | |
Ingress Protection | - | |
Features | - | |
Panel Cutout Dimensions | Circular - 20.20mm Dia | |
Operating Temperature | 0°C ~ 65°C | |
Mechanical Life | 20,000 Cycles | |
Electrical Life | 6,000 Cycles | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RR3112ABLKBLKNAF0 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RR3112ABLKBLKNAF0 is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of RR3112ABLKBLKNAF0 is new and unused, you can buy RR3112ABLKBLKNAF0 E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RR3112ABLKBLKNAF0.
