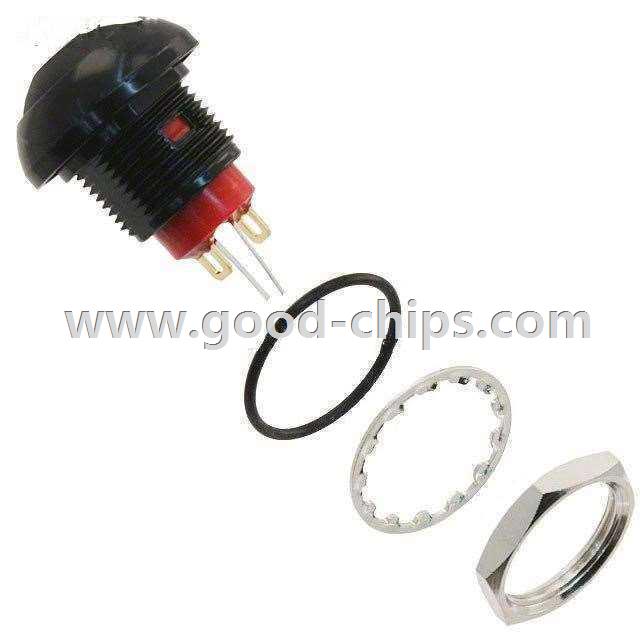

| Manufacturer Part Number: | RP8300B2M1CEBLKBLKRED |
|---|---|
| Manufacturer: | E-Switch |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 10534 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RP8300B2M1CEBLKBLKRED Datasheet |
| Internal Part Number | 898-RP8300B2M1CEBLKBLKRED | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Switch Overview | |
| 3D Model | RP8300B2M1CEBLKBLKyyy.stp | |
| Online Catalog | RP8100, RP8200, RP8300, and RP8400 Series | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | E-Switch | |
| Series | RP8300 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Standard, Illuminated | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Current Rating | 125mA (AC), 100mA (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 50V | |
| Actuator Type | Round, Button | |
| Color - Actuator/Cap | Black | |
| Illumination Type, Color | LED, Red | |
| Illumination Voltage (Nominal) | 2.1 VDC | |
| Mounting Type | Panel Mount, Front | |
| Termination Style | Solder Lug | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | - | |
| Panel Cutout Dimensions | Circular - 13.60mm Dia | |
| Operating Temperature | -30°C ~ 85°C | |
| Mechanical Life | - | |
| Electrical Life | 500,000 Cycles | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RP8300B2M1CEBLKBLKRED | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RP8300B2M1CEBLKBLKRED is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of RP8300B2M1CEBLKBLKRED is new and unused, you can buy RP8300B2M1CEBLKBLKRED E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RP8300B2M1CEBLKBLKRED.
