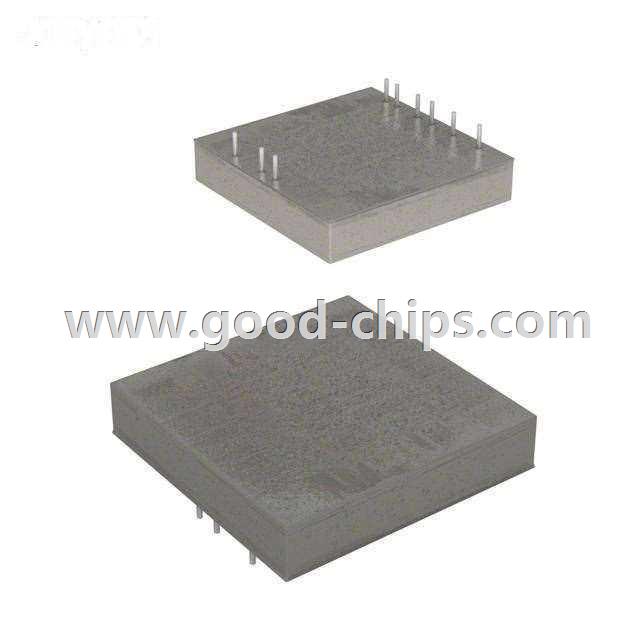

Manufacturer Part Number: | RP40-4812DG |
---|---|
Manufacturer: | Recom Power |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONV DC/DC 40W 36-75VIN +/-12V |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RP40-4812DG Datasheet |
Internal Part Number | 898-RP40-4812DG | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Purpose of DC/DC Converters | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Recom Power | |
Series | POWERLINE RP40-G | |
Packaging | Tube | |
Part Status | Active | |
Type | Isolated Module | |
Number of Outputs | 2 | |
Voltage - Input (Min) | 36V | |
Voltage - Input (Max) | 75V | |
Voltage - Output 1 | 12V | |
Voltage - Output 2 | -12V | |
Voltage - Output 3 | - | |
Current - Output (Max) | 1.8A, 1.8A | |
Power (Watts) - Manufacture Series | 40W | |
Voltage - Isolation | 1.6kV (1600V) | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OCP, OVP, SCP, UVLO | |
Mounting Type | Through Hole | |
Package / Case | 9-DIP Module | |
Size / Dimension | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 87% | |
Power (Watts) - Max | 40W | |
Standard Package | 4 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RP40-4812DG | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RP40-4812DG is in stock for immediate shipping now. We are the distributor of Recom Power all series components. The condition of RP40-4812DG is new and unused, you can buy RP40-4812DG Recom Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RP40-4812DG.
