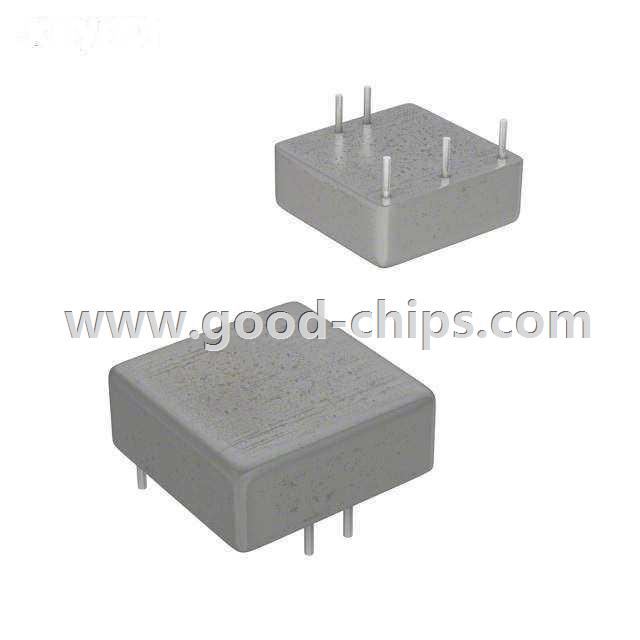

| Manufacturer Part Number: | RP15-2405DAW-HC |
|---|---|
| Manufacturer: | Recom Power |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONV DC/DC 15W 9-36VIN +/-05V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RP15-2405DAW-HC Datasheet |
| Internal Part Number | 898-RP15-2405DAW-HC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Recom Power | |
| Series | POWERLINE RP15-AW | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | Isolated Module | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 9V | |
| Voltage - Input (Max) | 36V | |
| Voltage - Output 1 | 5V | |
| Voltage - Output 2 | -5V | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 1.5A, 1.5A | |
| Power (Watts) - Manufacture Series | 15W | |
| Voltage - Isolation | 1.6kV (1600V) | |
| Applications | ITE (Commercial) | |
| Features | OCP, OVP, SCP | |
| Mounting Type | Through Hole | |
| Package / Case | 6-DIP Module (4 Leads) | |
| Size / Dimension | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 85% | |
| Power (Watts) - Max | 15W | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RP15-2405DAW-HC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RP15-2405DAW-HC is in stock for immediate shipping now. We are the distributor of Recom Power all series components. The condition of RP15-2405DAW-HC is new and unused, you can buy RP15-2405DAW-HC Recom Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RP15-2405DAW-HC.
