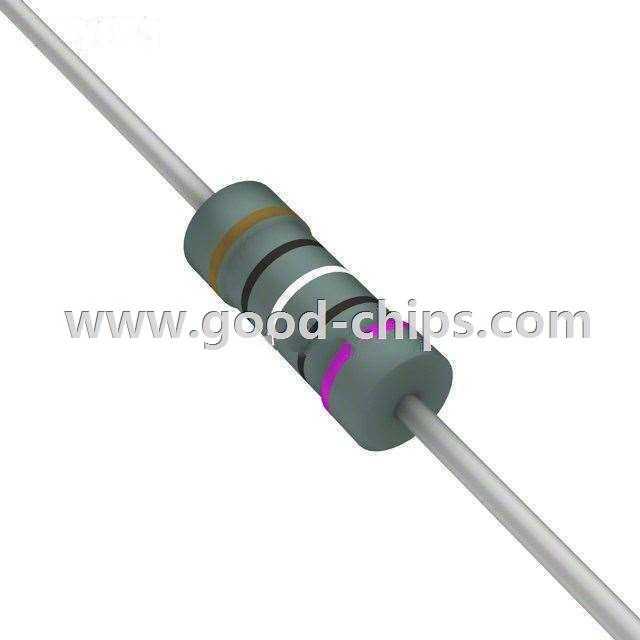

| Manufacturer Part Number: | RNF14BAE109R |
|---|---|
| Manufacturer: | Stackpole Electronics Inc. |
| Product Category: | Through Hole Resistors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES 109 OHM 1/4W .1% AXIAL |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RNF14BAE109R Datasheet |
| Internal Part Number | 898-RNF14BAE109R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Compliance | |
| PCN Part Number | Global Part Number 9/Aug/2010 | |
| Category | Resistors | |
| Family | Through Hole Resistors | |
| Manufacturer | Stackpole Electronics Inc. | |
| Series | RNF | |
| Packaging | Tape & Box (TB) | |
| Part Status | Active | |
| Resistance (Ohms) | 109 | |
| Tolerance | ±0.1% | |
| Power (Watts) | 0.25W, 1/4W | |
| Composition | Metal Film | |
| Features | Flame Retardant Coating, Safety | |
| Temperature Coefficient | ±25ppm/°C | |
| Operating Temperature | -55°C ~ 155°C | |
| Package / Case | Axial | |
| Supplier Device Package | Axial | |
| Size / Dimension | 0.093" Dia x 0.250" L (2.35mm x 6.35mm) | |
| Height | - | |
| Number of Terminations | 2 | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RNF14BAE109R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RNF14BAE109R is in stock for immediate shipping now. We are the distributor of Stackpole Electronics Inc. all series components. The condition of RNF14BAE109R is new and unused, you can buy RNF14BAE109R Stackpole Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RNF14BAE109R.
