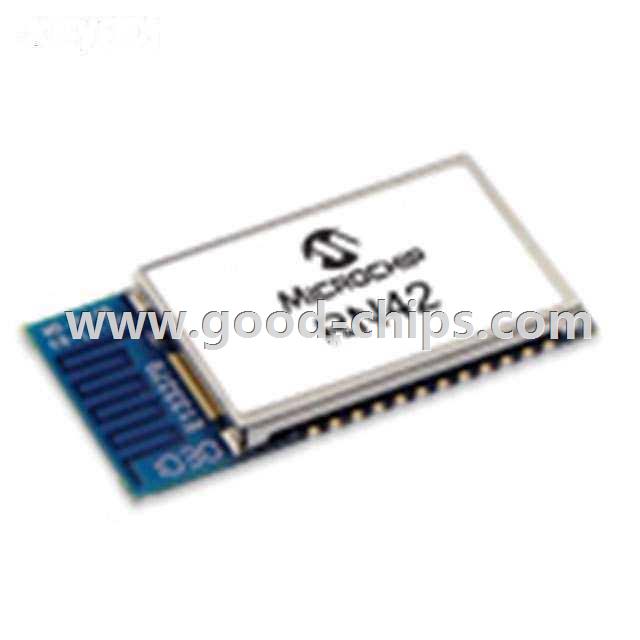

| Manufacturer Part Number: | RN42U-I/RM |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | RF Transceiver Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF TXRX MOD BLUETOOTH TRACE ANT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RN42U-I/RM Datasheet |
| Internal Part Number | 898-RN42U-I/RM | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| PCN Design/Specification | RN-42 Device Top Marking 22/Oct/2013 | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver Modules | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| RF Family/Standard | Bluetooth | |
| Protocol | Bluetooth v2.1 +EDR, Class 2 | |
| Modulation | - | |
| Frequency | 2.4GHz | |
| Data Rate | 3Mbps | |
| Power - Output | 4dBm | |
| Sensitivity | -80dBm | |
| Serial Interfaces | USB | |
| Antenna Type | Integrated, Trace | |
| Memory Size | - | |
| Voltage - Supply | 3 V ~ 3.6 V | |
| Current - Receiving | - | |
| Current - Transmitting | 30mA | |
| Mounting Type | Surface Mount | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | Module | |
| Standard Package | 64 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RN42U-I/RM | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RN42U-I/RM is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of RN42U-I/RM is new and unused, you can buy RN42U-I/RM Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RN42U-I/RM.
