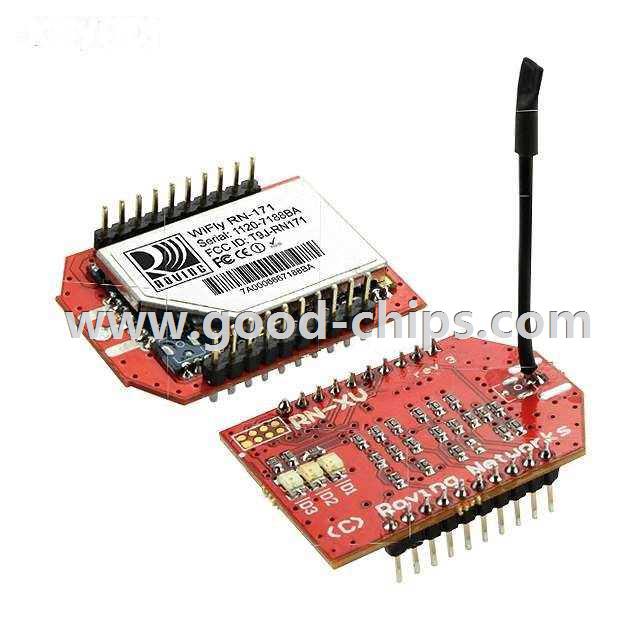

Manufacturer Part Number: | RN171XVW-I/RM |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | RF Transceiver Modules |
Available Quantity: | 9179 Pieces |
Unit Price: | Quote by Email |
Description: | RF TXRX MODULE WIFI WIRE ANT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RN171XVW-I/RM Datasheet |
Internal Part Number | 898-RN171XVW-I/RM | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | RN WiFLY Presentation | |
Design Resources | Development Tool Selector IoT Product Selector | |
PCN Design/Specification | RN Wi-Fi Firmware Upgrade 11/Nov/2013 Datasheet Update 22/Sep/2015 | |
PCN Assembly/Origin | Qualification Assembly Site 01/May/2014 Qualification Supertex Devices 24/Jul/2014 Fabrication Site Addition 17/Dec/2014 Qualification Revision 24/Apr/2015 | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
PCN Manufacturer Information | Mfg/Part Number 20/Jul/2012 | |
Online Catalog | RN-XV | |
Category | RF/IF and RFID | |
Family | RF Transceiver Modules | |
Manufacturer | Microchip Technology | |
Series | - | |
Packaging | Tray | |
Part Status | Active | |
RF Family/Standard | WiFi | |
Protocol | 802.11b/g | |
Modulation | CCK, DBPSK, DQPSK, DSSS, OFDM | |
Frequency | 2.4GHz | |
Data Rate | 54Mbps | |
Power - Output | 12dBm | |
Sensitivity | -83dBm | |
Serial Interfaces | UART | |
Antenna Type | Integrated, Wire Antenna | |
Memory Size | - | |
Voltage - Supply | 3 V ~ 3.7 V | |
Current - Receiving | 40mA | |
Current - Transmitting | 180mA | |
Mounting Type | Surface Mount | |
Operating Temperature | -40°C ~ 85°C | |
Package / Case | 49-SMD Module | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RN171XVW-I/RM | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RN171XVW-I/RM is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of RN171XVW-I/RM is new and unused, you can buy RN171XVW-I/RM Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RN171XVW-I/RM.
