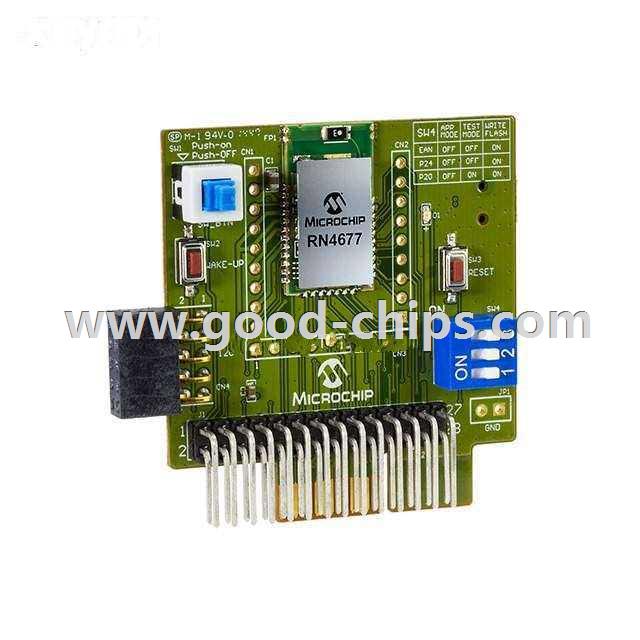

Manufacturer Part Number: | RN-4677-PICTAIL |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | RF Transceiver Modules |
Available Quantity: | 9046 Pieces |
Unit Price: | Quote by Email |
Description: | RF TXRX MOD BLUETOOTH CHIP ANT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RN-4677-PICTAIL Datasheet |
Internal Part Number | 898-RN-4677-PICTAIL | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector IoT Product Selector | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Online Catalog | RN4677 | |
Category | RF/IF and RFID | |
Family | RF Transceiver Modules | |
Manufacturer | Microchip Technology | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
RF Family/Standard | Bluetooth | |
Protocol | Bluetooth v4.0 Dual Mode | |
Modulation | - | |
Frequency | 2.4GHz | |
Data Rate | - | |
Power - Output | 2dBm | |
Sensitivity | -92dBm | |
Serial Interfaces | UART | |
Antenna Type | Integrated, Chip | |
Memory Size | - | |
Voltage - Supply | 3.2 V ~ 4.3 V | |
Current - Receiving | 70mA | |
Current - Transmitting | 70mA | |
Mounting Type | Surface Mount | |
Operating Temperature | -20°C ~ 70°C | |
Package / Case | Module | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RN-4677-PICTAIL | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RN-4677-PICTAIL is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of RN-4677-PICTAIL is new and unused, you can buy RN-4677-PICTAIL Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RN-4677-PICTAIL.
