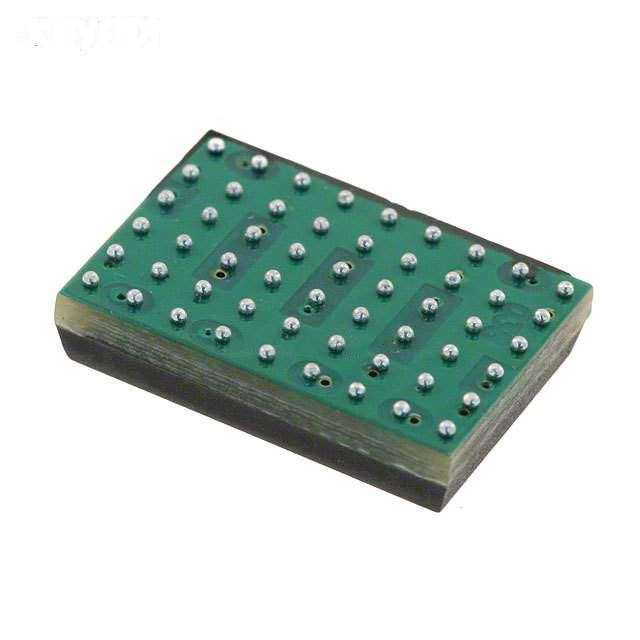

Manufacturer Part Number: | RM05-4AS-4/4 |
---|---|
Manufacturer: | Standex-Meder Electronics |
Product Category: | Signal Relays, Up to 2 Amps |
Available Quantity: | 9462 Pieces |
Unit Price: | Quote by Email |
Description: | Reed Relay 4PST (4 Form A) Surface Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RM05-4AS-4/4 Datasheet |
Internal Part Number | 898-RM05-4AS-4/4 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Magnetic Mapping RF Reed Relays Presentation – Part 1 RF Reed Relays Presentation-Part 2 | |
Online Catalog | RM Series | |
Category | Relays | |
Family | Signal Relays, Up to 2 Amps | |
Manufacturer | Standex-Meder Electronics | |
Series | RM | |
Packaging | Bulk | |
Part Status | Active | |
Relay Type | Reed | |
Coil Type | Non Latching | |
Coil Current | 27mA | |
Coil Voltage | 5VDC | |
Contact Form | 4PST (4 Form A) | |
Contact Rating (Current) | 300mA | |
Switching Voltage | 180VAC, 180VDC - Max | |
Turn On Voltage (Max) | 3.75 VDC | |
Turn Off Voltage (Min) | 0.5 VDC | |
Operate Time | 0.6ms | |
Release Time | 0.05ms | |
Features | - | |
Mounting Type | Surface Mount | |
Termination Style | BGA | |
Contact Material | - | |
Coil Power | 135 mW | |
Coil Resistance | 185 Ohms | |
Operating Temperature | -20°C ~ 85°C | |
Standard Package | 20 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RM05-4AS-4/4 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RM05-4AS-4/4 is in stock for immediate shipping now. We are the distributor of Standex-Meder Electronics all series components. The condition of RM05-4AS-4/4 is new and unused, you can buy RM05-4AS-4/4 Standex-Meder Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RM05-4AS-4/4.
